Electricity & Electrical Circuits
Showing 1–16 of 566 results
-
Electricity & Electrical Circuits, Physics

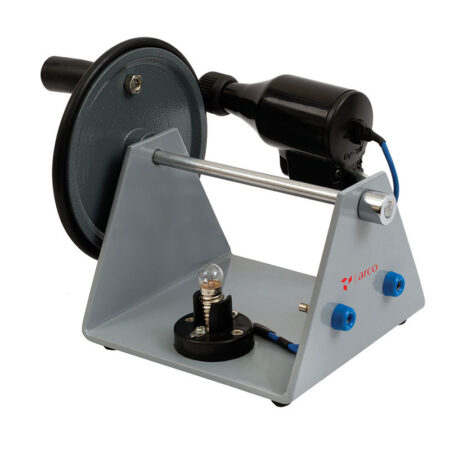

AC Generator
Catalogue No: 1090675
A bicycle dynamo engaged to a rubber belt on wheel with a handle to rotate it with free movement. The output voltage from dynamo directly is available from a pair of 4mm sockets and a 3.5V bulb. Used to demonstrate the generation of electrical energy from the dynamo. Maximum output from the dynamo is 6V/3W.
* AC GeneratorPack of (Pcs): 1
SKU: 1090675 -
Electricity & Electrical Circuits, Physics

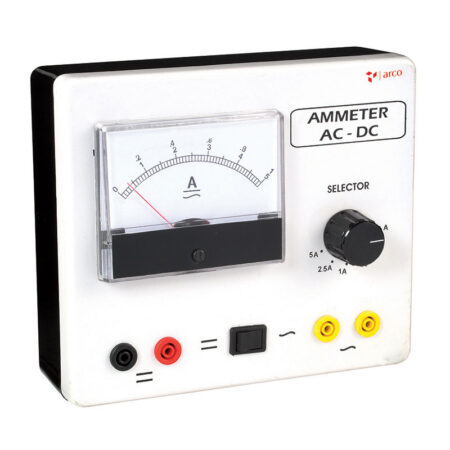

Ammeter, Multirange, AC/DC
Catalogue No: 1091640
A multirange rectangular ammeter mounted on top of a sturdy plastic box, with ranges selectable through a rotatory knob and AC/DC selection through a toggle switch. AC input through a pair of 4mm shielded sockets and DC output through a pair of 4mm colour-coded shielded sockets. Ranges available are 10mA / 100mA / 500mA / 1A / 2.5A / 5A in both AC and DC.
* Ammeter, Multirange, AC/DCPack of (Pcs): 1
SKU: 1091640 -
Electricity & Electrical Circuits, Physics
Basic Electricity Kit
Catalogue No: 1091269
Designed for classroom demonstration of concepts of electricity to a group of students.
Features components and accessories which can be mounted on a vertical white metal board (cat no. 1151100/1). All components that can be mounted have strong magnet at their bottom.
Components included are:
* Cell holder 3 Nos. * Bulb with holder 3 Nos.
* Lead 4mm red 10cm 3 Nos. * Lead 4mm black 10cm 3 Nos.
* Lead 4mm red 25cm 1 No. * Lead 4mm black 25cm 1 No.
* Push Switch 1 No. * Steel wool 1 No.
* Universal clips 1 No. * Rheostat 1 No.
* Insulated wire 1 No. * Magnetic Board 1 No.
* Soft iron bar 1 No. * Compass 1 No.
* Change over switch 1 No. * Resistance 1 No.
* Diode 1 No. * Crocodile Clips 2 Nos.
* Electrode holder with 2 carbon rods * 1No.
* Metallic White Board (Cat. No. 1151100/1) not included.
* Basic Electricity KitPack of (Set): 1
SKU: 1091269 -
Electricity & Electrical Circuits, Physics

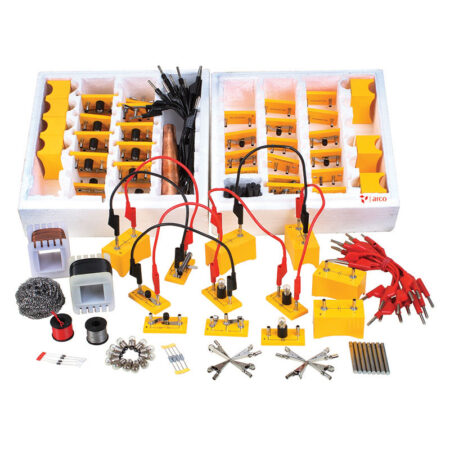

Basic Electricity Kit
Catalogue No: 1091270
An economical kit with collection of various components to provide students clear insight into simple electrical circuits and many other related concepts using various circuit elements. The complete kit packed and supplied in specially made, durable trays that facilitate convenient storage after use, while keeping the kit organized. Supplied with detailed instructional material. Kit comprises:
* Cell Holder (without Cells) 12 Nos.
* Bulb Holder, MES, Mounted on Base 20 Nos.
* Push Key 8 Nos.
* 2-Way Switch 4 Nos.
* Universal Clip 4 Nos.
* Electrode Holder 4 Nos.
* Variable Resistance 4 Nos.
* Bulbs, MES 40 Nos.
* Connecting Lead, 4mm, 10cm, Red 12 Nos.
* Connecting Lead, 4mm, 10cm, Black 12 Nos.
* Connecting Lead, 4mm, 25cm, Red 4 Nos.
* Connecting Lead, 4mm, 25cm, Black 4 Nos.
* Crocodile Clips 8 Nos.
* Carbon Rod 12 Nos.
* Soft Iron Rod 8 Nos.
* Silicon Diode 4 Nos.
* Resistance, Fixed 4 Nos.
* Copper Wire, Bare, 20SWG 1 Reel
* Copper Wire, Insulated, 50m 1 Reel
* Eureka Wire, 34SWG 50g.
* Copper Foil Sheet, 150*150mm 1 No.
* Steel Wool 1 Pack
* Basic Electricity KitPack of (Set): 1
SKU: 1091270 -
-
Electricity & Electrical Circuits, Physics

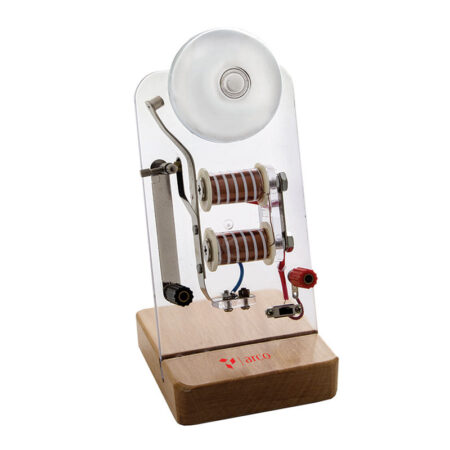

Bell Demonstration On A Wooden Base
Catalogue No: 1091410
Features open type construction with bigger components to visualize the working of electric bell.
This model can be used to :
* Test simple electric circuits.
* Teach about electromagnetism.
* Understand how the components of a bell work together.
All the components are mounted on a transparent acrylic panel, fittedon wooden base. Operating voltage is 3-4V DC.
* Bell Demonstration on a Wooden BasePack of (Pcs): 1
SKU: 1091410 -
Electricity & Electrical Circuits, Physics

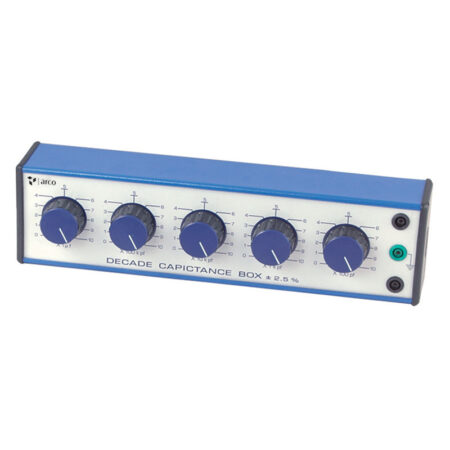

Capacitance Box, Decade, Dial Type, Metal
Catalogue No: 1090840/5
Finds many useful applications in the laboratory, such as resonance timing, wave shaping, oscillator experiments, etc and also as capacitance substitution box. Construction features are similar to Cat. No. 1090800. Accuracy +-10%.
Note: Other ranges also available on specific request.
* Five Decades
0-1000pF (1nF) x 100pF
0-10nF x 1nF
0-100nF x 10nF
0-1000nF (1 micro F) x 100nF
0-10 micro F x 1 micro FPack of (Pcs): 1
SKU: 1090840/5 -
Electricity & Electrical Circuits, Physics

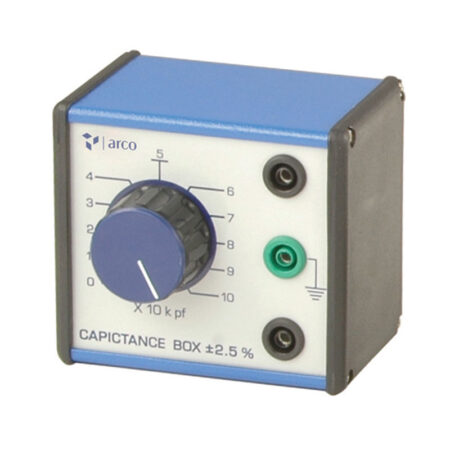

Capacitance Box, Decade, Dial Type, Metal
Catalogue No: 1090840/1
Finds many useful applications in the laboratory, such as resonance timing, wave shaping, oscillator experiments, etc and also as capacitance substitution box. Construction features are similar to Cat. No. 1090800. Accuracy +-10%.
Note: Other ranges also available on specific request.
* One Decade
0-100nF x 10nFPack of (Pcs): 1
SKU: 1090840/1 -
Electricity & Electrical Circuits, Physics

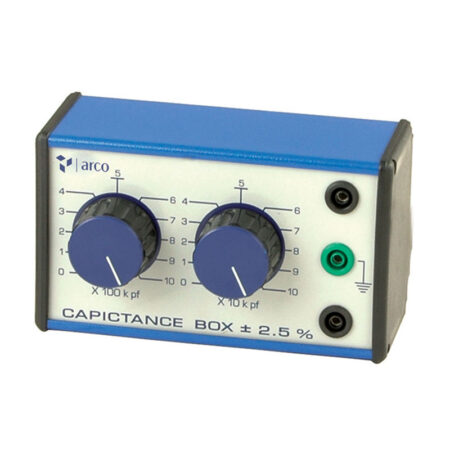

Capacitance Box, Decade, Dial Type, Metal
Catalogue No: 1090840/2
Finds many useful applications in the laboratory, such as resonance timing, wave shaping, oscillator experiments, etc and also as capacitance substitution box. Construction features are similar to Cat. No. 1090800. Accuracy +-10%.
Note: Other ranges also available on specific request.
* Two Decades
0-100nF x 10nF
0-1000nF (1 micro F) x 100nFPack of (Pcs): 1
SKU: 1090840/2 -
Electricity & Electrical Circuits, Physics

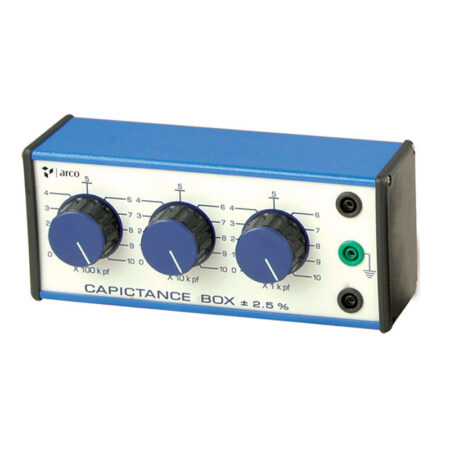

Capacitance Box, Decade, Dial Type, Metal
Catalogue No: 1090840/3
Finds many useful applications in the laboratory, such as resonance timing, wave shaping, oscillator experiments, etc and also as capacitance substitution box. Construction features are similar to Cat. No. 1090800. Accuracy +-10%.
Note: Other ranges also available on specific request.
* Three Decades
0-10nF x 1nF
0-100nF x 10nF
0-1000nF (1 micro F) x 100nFPack of (Pcs): 1
SKU: 1090840/3 -
Electricity & Electrical Circuits, Physics
Capacitance Box, Decade, Dial Type, Metal
Catalogue No: 1090840/4
Finds many useful applications in the laboratory, such as resonance timing, wave shaping, oscillator experiments, etc and also as capacitance substitution box. Construction features are similar to Cat. No. 1090800. Accuracy +-10%.
Note: Other ranges also available on specific request.
* Four Decades
0-10nF x 1nF
0-100nF x 10nF
0-1000nF (1 micro F) x 100nF
0-10 micro F x 1 microPack of (Pcs): 1
SKU: 1090840/4 -
-
Electricity & Electrical Circuits, Physics

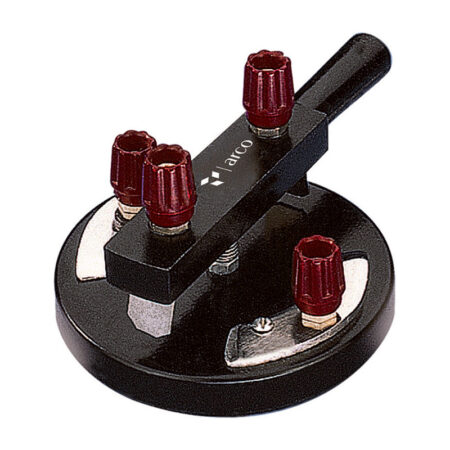

Commutator (Mip Reversing Key)
Catalogue No: 1090100
For use in circuits, where a rapid changeover of polarity is required. The switch comprises a rotatable spring loaded beam of insulating plastic with two brushes each connected to 4mm socket terminals. The brushes and contact strips are arranged on the beam and base respectively so that when beam is rotated from one side to other, the polarity of connections is reversed. All brushes and contact strips of laminated phosphor bronze brushes ensuring good contact and long life.
* Commutator (Mip Reversing Key)Pack of (Pcs): 1
SKU: 1090100 -
Electricity & Electrical Circuits, Physics

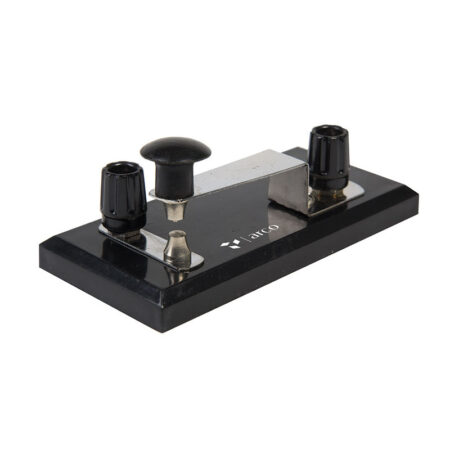

Contact Key, Single
Catalogue No: 1090040
Comprising a plated spring strip arm with thumb-press knob, a contact stud, plated connecting strip and a pair of 4mm terminals, all mounted on a moulded plastic base.
* Contact Key, SinglePack of (Pcs): 1
SKU: 1090040 -
Electricity & Electrical Circuits, Physics

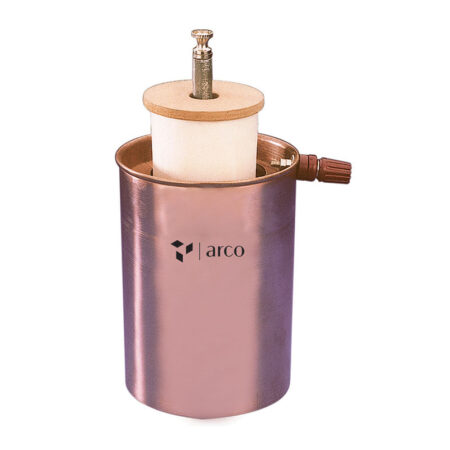

Daniel Cell
Catalogue No: 1090280
Provides satisfactory performance and constant EMF over continuous use. Comprising a heavy-gauge copper outer vessel with an internal perforated shelf for copper sulphate crystals, a porous pot and an amalgamated zinc rod fitted with a wooden supporting cap. The zinc rod and copper vessel are each provided with a 4mm socket terminals. The cell has an EMF of 1.1V approx, with a working capacity of about 0.85L.
* Daniel CellPack of (Set): 1
SKU: 1090280 -
Electricity & Electrical Circuits, Physics

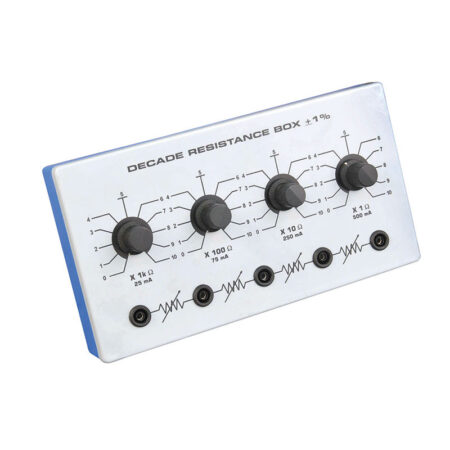

Decade Resistance Box
Catalogue No: 1090770
Four rotary switches (with positive click stop) mounted on a plastic box to select the desired value of resistance as indicated alongside index mark on the knobs. Four different dials are having resistors of 10x1k Ohm, 10×100 Ohm, 10×10 Ohm and 10×1 Ohm. Output is available via 4mm safety sockets. Resistance Accuracy +-s +- 1% .
* Decade Resistance BoxPack of (Pcs): 1
SKU: 1090770
