Electricity & Electrical Circuits, Physics
Electric Field Apparatus
Catalogue No: 1090120
For investigation of electric field patterns due to various electrode configurations and also permits easy demonstration of the related concepts to a group of students through overhead projector. The apparatus comprises a clear plastic dish and a transparent rectangular base carrying a pair of 4mm socket terminals that can also hold adjustable electrodes. Includes a set of 6 electrodes – two point source electrodes, two line source electrodes and two circular rings of 35 and 70mm diameter respectively.
* Electric Field ApparatusPack of (Set): 1
SKU: 1090120 -
Electricity & Electrical Circuits, Physics
Electricity Kit
Catalogue No: 1091245
For performing basic activities related to electricity, electrical circuits and its various components and configurations.
Activities those can be performed with this kit:
* Characteristics of a complete circuits.
* Materials used as a best conductor of electricity.
* Working of a switch.
* How do I control the brightness of the bulb*
* Changing of circuits.
* To draw a block diagram of a circuit.
* How the wires of different materials affect the brightness of a bulb*
* Electricity KitPack of (Set): 1
SKU: 1091245 -
Electricity & Electrical Circuits, Physics
Electricity Kit
Catalogue No: 1091250
Kit consists of:
* Cell holder with batteries 2 Nos. * Bridging plugs 4 Nos.
* Resistor 100* 2 Nos. * Multimeter 2 Nos.
* Resistor 220* 1 No. * Buzzer 1 No.
* Lamp Holder 1 No. * Toggle switch 1 No.
* Capacitor 1000*F/16V 2 Nos. * Push to ON switch 1 No.
* Inductor coil 1 No. * Compass 1 No.
* Clips 5 Nos. * Relay 12V DC 1 No.
* Motor small 2 Nos. * Plastic fan 2 Nos.
* C core with clips 1 set * Coil 400 turns 1 No.
* Coil 1600 turns 1 No. * Reversing switch 2 Nos.
* Potentiometer 100*/5W 1 No.
Experiments can be performed using this kit:
* Verification of Ohm’s Law
* Verification of Kirchhoff* Law
* Potential difference or electro-motive force measurement
* Current measurement
* Voltage measurement
* Charging and discharging of a capacitor
* Combination of capacitors in series and parallel
* Measurement of electrical resistance
* Combination of resistances in series and in parallel
* Use of Buzzer in an electrical circuit
* Use of relay in an electrical circuit
* Understanding of transformer and its working
* Understanding of dynamo and its working
* Transformation of electrical energy into mechanical energy
* Working of electromagnet
* Direction of magnetic field
Additional use of cathode ray oscilloscope makes this kit a versatile tool for the electricity experiments.
* Electricity KitPack of (Set): 1
SKU: 1091250 -
Electricity & Electrical Circuits, Physics

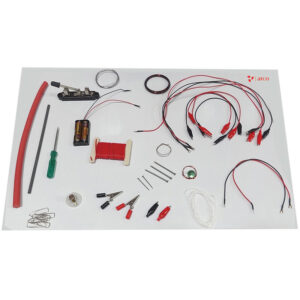

Electricity Kit
Catalogue No: 1091272
Useful for studying the effects of electric current.
Kit Consists of:
* Tester Screw Driver 1 No.
* Paper Clip 1 No.
* Dry Cell, AA Type 2 Nos.
* Knife Switch, SDPT 1 No.
* Connecting Wire with crocodile clip Red & Black 5 pair
* Iron nail big 1 No.
* Copper ring 1 No.
* Rubber Rod 1 No.
* Brass screw 1 No.
* Aluminum Rivet 1 No.
* Marble 2 Nos.
* Carbon Rod 1 No.
* Nail 50mm long 1 No.
* Piece of cord 1 No.
* Bare Copper wire 1 No.
* Bulbs 4.5V/0.3A MES type 10 Nos.
* Wooden block disc shape 1 No.
* Piece of Porcelain block 1 No.
* Bulb Holders plastic, MES type 5 Nos.
* Spool of copper wire PVC insulated 1 No.
* Crocodile Clip Big (Red & Black) 1 pair
* Thermometer -20 to 50*C 1No.
* Nichrome wire cotton insulated 1No.
* Cell holder, AA Cell 2 No.
* Electricity KitPack of (Set): 1
SKU: 1091272 -
Electricity & Electrical Circuits, Physics
Electrode Plates For Simple Cells
Catalogue No: 1090360/4
For use in simple voltaic cells as electrodes. Each rectangular plate is 125x50mm in size and is fitted with a terminal for electrical connection.
* Material : Lead
Thickness : 1.5mmPack of (Pcs): 10
SKU: 1090360/4 -
Electricity & Electrical Circuits, Physics
Electrode Plates For Simple Cells
Catalogue No: 1090360/1
For use in simple voltaic cells as electrodes. Each rectangular plate is 125x50mm in size and is fitted with a terminal for electrical connection.
* Material : Zinc
Thickness : 1.5mmPack of (Pcs): 10
SKU: 1090360/1 -
Electricity & Electrical Circuits, Physics
Electrode Plates For Simple Cells
Catalogue No: 1090360/2
For use in simple voltaic cells as electrodes. Each rectangular plate is 125x50mm in size and is fitted with a terminal for electrical connection.
* Material : Carbon
Thickness : 6mmPack of (Pcs): 10
SKU: 1090360/2 -
Electricity & Electrical Circuits, Physics
Electrode Plates For Simple Cells
Catalogue No: 1090360/3
For use in simple voltaic cells as electrodes. Each rectangular plate is 125x50mm in size and is fitted with a terminal for electrical connection.
* Material : Copper
Thickness : 1.5mmPack of (Pcs): 10
SKU: 1090360/3 -
Electricity & Electrical Circuits, Physics

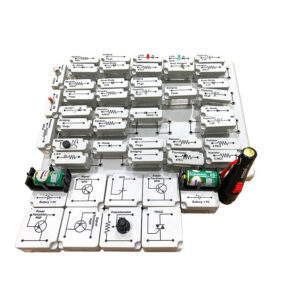

Electronics Kit
Catalogue No: 1091255
Kit consists of:
* Cell holder with batteries 2 Nos. * Lamp Holder 1 No.
* Bridging plugs 7 Nos. * Si diode 4 Nos.
* Toggle switch 1 No. * Multimeter 2 Nos.
* Capacitor 1 MicroF 2 Nos. * Potentimeter1KOhm 1 No.
* Resistor 10KOhm 1 No. * Resistor 1KOhm 1 No.
* Resistor 4.7KOhm 1 No. * Resistor 100Ohm 1 No.
* Resistor 3.3 KOhm 1 No. * Resistor 1MOhm 1 No.
* Resistor 220Ohm 1 No. * Resistor 47KOhm 1 No.
* Resistor 470Ohm 2 Nos. * Thermistor 47KOhm 2 Nos.
* TRIAC 1 No. * Capacitor 10*F 2 Nos.
* Speaker 1 No. * Torch 1 No.
* Lamp 12V 2 Nos. * Infra red LED 1 No.
* Photo transistor 1 No. * LED Green 1 No.
* LED Red 1 No. * LDR 1 No.
* PNP power transistor 1 No. * PNP Signal Transistor 1 No.
* NPN power transistor 1 No. * NPN signal transistor 1 No.
* SCR (Silicon Controlled Rectifier) 1 No.
* Zener diode 51V/ 62V/ 82V 1each
A variety of electronic experiments can be performed using this kit:
* Diode characteristics
* Diode as a rectifier
* Transistor characteristics
* Transistor as a switch
* Transistor as an amplifier
* UJT characteristics
* Audio-amplifier
* SCR characteristics
* Triac characteristics
* Wiring up oF x LED
* Analysis of Zener shunt regulation
* Zener diode characteristics
* Potentiometer experiments
Additional use of cathode ray oscilloscope makes this kit a versatile tool for more advanced activities in electronics
* Electronics KitPack of (Set): 1
SKU: 1091255 -
-
-
-
-
-
-
