Electricity & Electrical Circuits

Catalogue No: 1090020/1

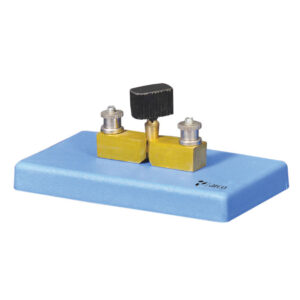

Comprising brass blocks, each fitted with 4mm socket terminal and mounted on a moulded base. An accurately tapered plug with a fluted plastic top fits into the hole between the blocks providing a very low contact resistance.
* Plug Switch, One Way

Pack of (Pcs): 1

Catalogue No: 1090020/2

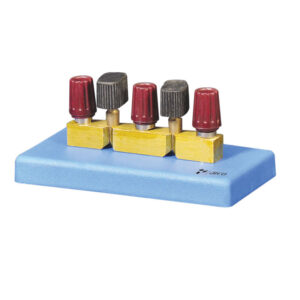

Comprising brass blocks, each fitted with 4mm socket terminal and mounted on a moulded base. An accurately tapered plug with a fluted plastic top fits into the hole between the blocks providing a very low contact resistance.
* Plug Switch, Two Way

Pack of (Pcs): 1

Catalogue No: 1090860/2

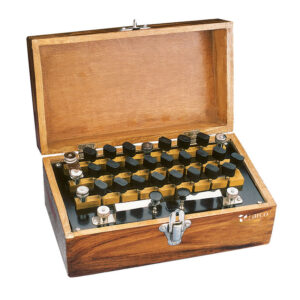

Plug type, in polished wooden box with hinged lid and panel printed with circuit connections. Resistance Coils are double silk covered and wound noninductively and have a negligible temperature co-efficient. Three pairs of ratio arms of 10, 100, 1000 ohm and resistance arms contains 16 coils from 1 to 5000 ohm with infinity plug. Total value 11110 ohm . Provided with Two spring keys having special contact for battery and galvanometer fitted. Accuracy of coils 100 ohm to 500 ohm is +- 0.05% and other coils in +- 0.1% of the marked value.
* Coils of Manganin Wire, more accurate

Pack of (Pcs): 1

Catalogue No: 1091140/1

Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
Supplied with jockey.

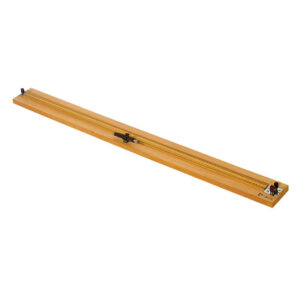

* Single Wire (1m), On Polished Wooden Base

Pack of (Pcs): 1

Catalogue No: 1091140/4

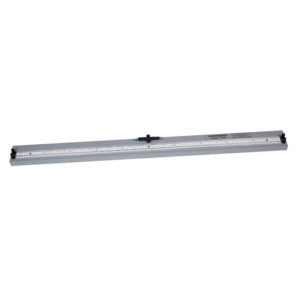

Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
* Double Wire (2m), On Painted Metal Base

Pack of (Pcs): 1

Catalogue No: 1091170

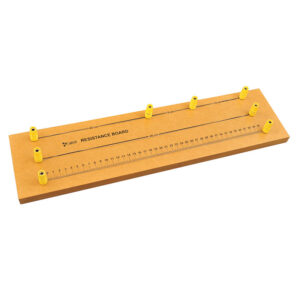

Useful for investigating resistivity. Three resistance wires each of length 40cm and having cross sectional are ratio of 1:2:4 are mounted on wooden base 50cm long. One can study the correction of the resistance to the length and cross section of the wire. Provided with 4mm terminals for connection.
* Resistance Board

Pack of (Pcs): 1

Catalogue No: 1090800/2

Comprises circular dials mounted, inside sturdy Aluminum extrusion case. Each dial has 10 resistances, with a knob at the top which rotates with positive click stop to select the desired value as indicated alongside index mark on the knob. Provided with a pair of 4mm sockets for connecting the resistances across a circuit and a green safety socket for earthing. Multiple dials are connected in series to add to the total resistances of each dial. Accuracy +-1%.
Note: Other ranges also available on specific request.
* Two Decades
0-100 ohm x 10 ohm
0-10 ohm x 1 ohm

Pack of (Pcs): 1

Catalogue No: 1090800/3

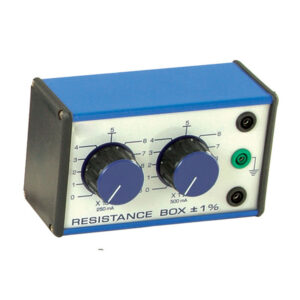

Comprises circular dials mounted, inside sturdy Aluminum extrusion case. Each dial has 10 resistances, with a knob at the top which rotates with positive click stop to select the desired value as indicated alongside index mark on the knob. Provided with a pair of 4mm sockets for connecting the resistances across a circuit and a green safety socket for earthing. Multiple dials are connected in series to add to the total resistances of each dial. Accuracy +-1%.
Note: Other ranges also available on specific request.

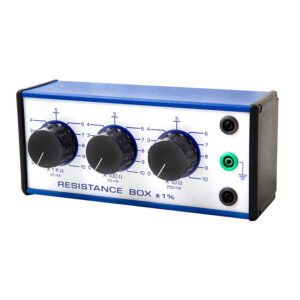

* Three Decades
0-100 ohm x 10 ohm
0-1000 ohm x 100 ohm
0-10k ohm x 1k ohm

Pack of (Pcs): 1
