Active Low Pass Filter
Catalogue No: 1100508

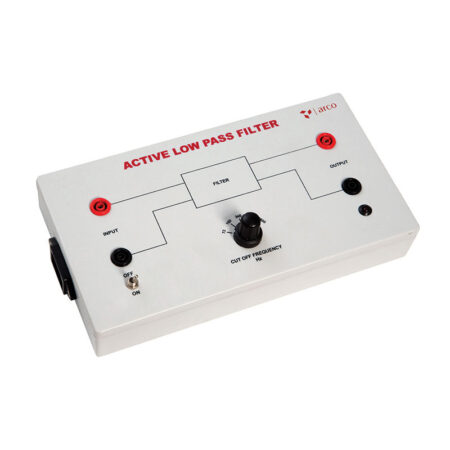

Active Low Pass Filter used to attenuate the high frequency audio signals. Lower frequency audio signals pass through relatively unaffected, so this apparatus is named as Low Pass Filter. The cutoff frequency can be varied by selecting different circuit component values by means of a rotary switch. Operating voltage 220V AC.
* Active Low Pass FilterPack of (Pcs): 1
SKU: 1100508 -
Electronics, Physics
Analogue to Digital Converter
Catalogue No: 1100225
ADC circuit internally fitted inside a plastic box of size 142x80x40mm approx. Input of Analogue signal 0-5V DC through 4mm input sockets is converted into digital output signal. 8 LED’s are used for representation of 8 bit binary digital signal. The output voltage against each LED directly comes out through 4mm sockets and can be used for coupling it with DAC instrument. Operating voltage for the instrument is 220V AC.
* Analogue to Digital ConverterPack of (Pcs): 1
SKU: 1100225 -
-
Electronics, Physics

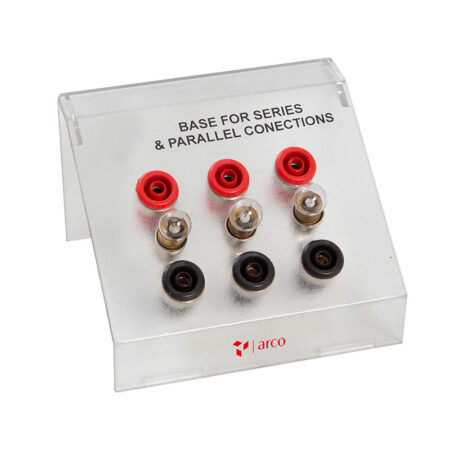

Base For Series & Parallel Connections
Catalogue No: 1100377/1

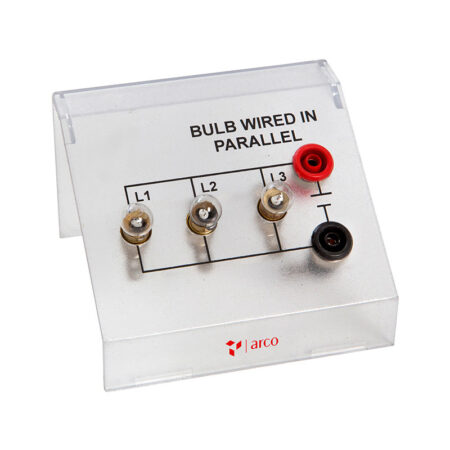

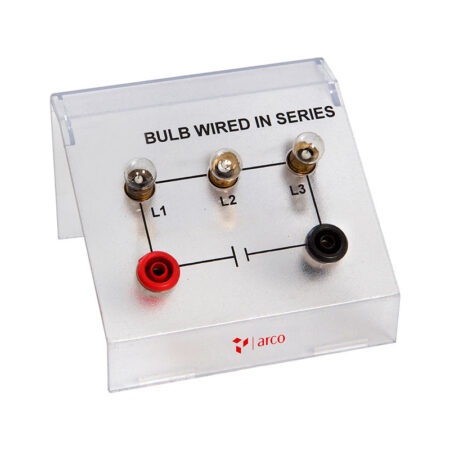

Three MES E10 bulbs with holders fitted on a transparent base of size 100 x 90 x 65mm approx. These bulbs can be connected either in series or parallel using connecting lead via 4mm safety sockets provided across each bulb holder.
* Base For Series & Parallel ConnectionsPack of (Pcs): 1
SKU: 1100377/1 -
Electronics, Physics
Bench Signal Generator
Catalogue No: 1100726

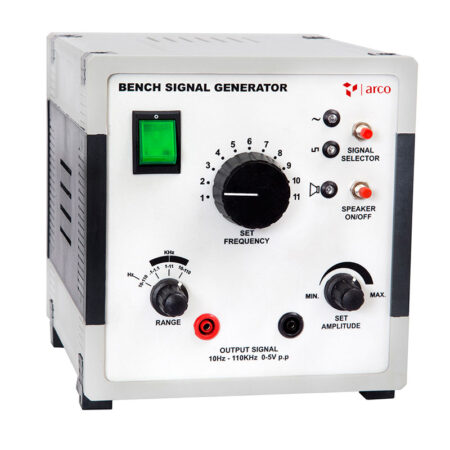

* Output Waveforms: Sine and Square (selectable through push switch, with indicator)
* Frequency Range: 10Hz – 110kHz (Total)
* Range Selectable: 10Hz – 110Hz
0.1 – 1.1kHz
1 – 11kHz
10 – 110kHz
(selectable though rotary switch and fine adjustment knob for frequency)
* Output Amplitude: 5V (peak-to-peak)
* Internal Speaker
* Operating Voltage: 110/220V AC selectable, 50/60Hz
* Bench Signal GeneratorPack of (Pcs): 1
SKU: 1100726 -
Electronics, Physics
Binary to Decimal Converter
Catalogue No: 1100228
Binary To Decimal Converter is useful to study the conversion of 10 digit binary value (0000000000 to 1111111111) into decimal value (0000- 1023). Ten toggle switches are provided on the front panel for the input of binary code. Four digit FND is provided to display the relevant results corresponding to the combinations of toggle switches. Supplied with power adaptor of 5V, 1 Amp.
* Binary To Decimal ConverterPack of (Pcs): 1
SKU: 1100228 -
Electronics, Physics

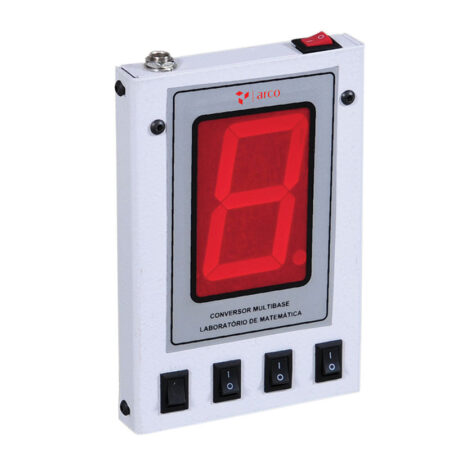

Binary to Hex Converter
Catalogue No: 1100238
Binary To HEX Converter is useful to study the conversion of 4 digit binary value (0000-1111) into hex value (0-9, A-F). Four toggle switches are provided on the front panel for the input of binary code. A 2.3 inch single digit FND is provided to display the relevant results corresponding to the combinations of toggle switches. Supplied with power adaptor of 5V, 1A.
* Binary to Hex ConverterPack of (Pcs): 1
SKU: 1100238 -
Electronics, Physics

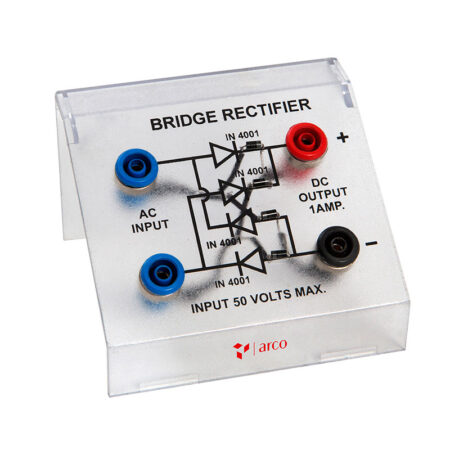

Bridge Rectifier
Catalogue No: 1100131/2

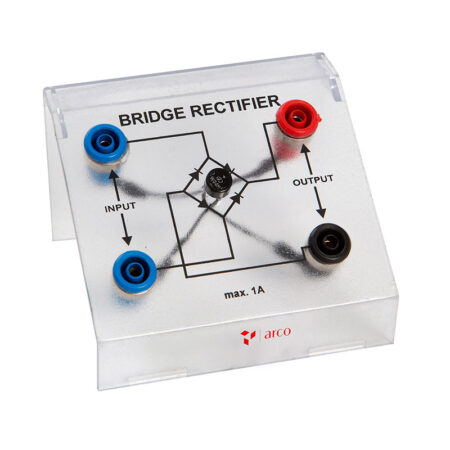

Bridge Rectifier mounted on a specially designed transparent base of size 100 x 90 x 65mm approx, which converts AC input into DC output voltage. The block diagram of printed on the top of the base. 4mm safety sockets provided for connections.
* 1N-4007Pack of (Pcs): 1
SKU: 1100131/2 -
Electronics, Physics
Bridge Rectifier
Catalogue No: 1100131/1
Bridge Rectifier mounted on a specially designed transparent base of size 100 x 90 x 65mm approx, which converts AC input into DC output voltage. The block diagram of printed on the top of the base. 4mm safety sockets provided for connections.
* W04MPack of (Pcs): 1
SKU: 1100131/1 -
-
-
Electronics, Physics
Capacitor Characteristics
Catalogue No: 1100505

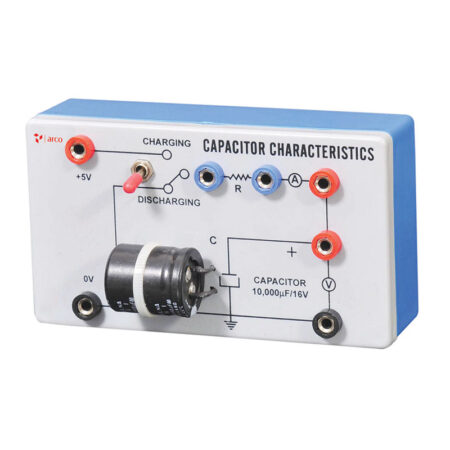

Charging and discharging of a capacitor can be easily demonstrated by using this instruments. A 10000uF electrolytic capacitor mounted on a plastic case with a provision for connecting ammeter and voltmeter across the capacitor. For selection of charging/discharging, a toggle switch is provided on the base. For precise measurement of current and voltage across the capacitor, a series resistance is fitted in the circuit to give a time constant of 50 S. Operats on 5V DC.
* Capacitor CharacteristicsPack of (Pcs): 1
SKU: 1100505 -
Electronics, Physics

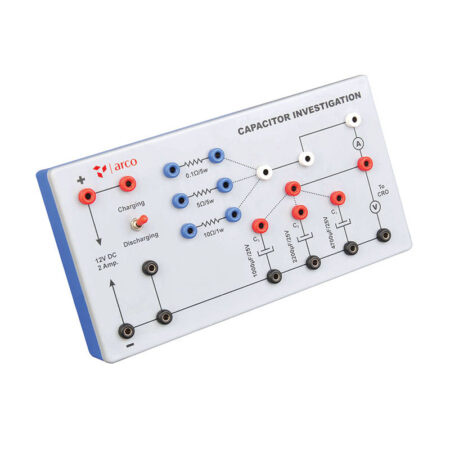

Capacitor Investigation
Catalogue No: 1100505/1
Set of three capacitors and resistors are fitted on a plastic case to demonstrate the characteristics of capacitors in charging and discharging. It has a provision to attach ammeter and voltmeter across the capacitor. A 12V, 2A DC power supply is required to operate the instrument.
* Capacitor InvestigationPack of (Pcs): 1
SKU: 1100505/1 -
Electronics, Physics

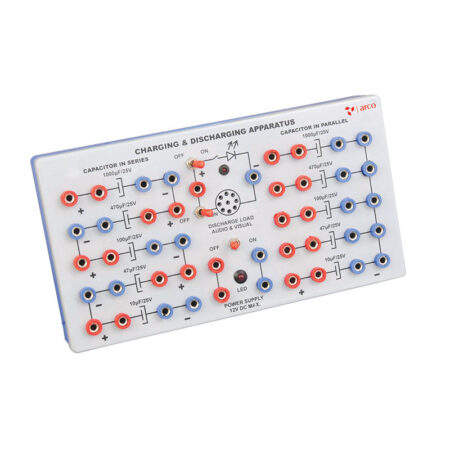

Charging And Discharging Apparatus
Catalogue No: 1100505/2
Set of five capacitors of different values are fitted on a plastic base with a provision to use them in series and parallel as per the experimental requirement. Two devices – one speaker with series LED and a LED to demonstrate the charging and discharging effect of capacitors. Instrument works on 12V DC power supply. All connections are made via 4mm banana plug leads.
* Charging And Discharging ApparatusPack of (Pcs): 1
SKU: 1100505/2 -
Electronics, Physics

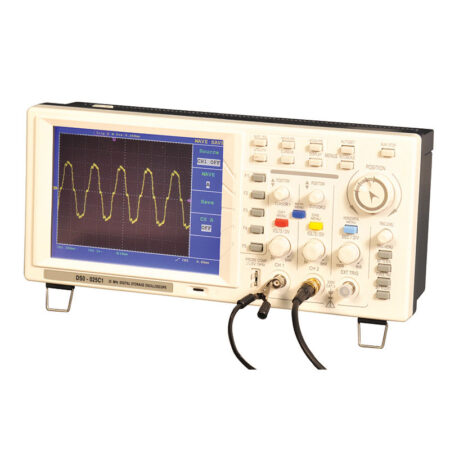

Digital Storage Oscilloscope
Catalogue No: 1100785
FEATURES
* 250MS/s real time sample rate
* 5.7 inch LCD colour display 320 x 240 resolution
* Dual Channel
* 28 Automatic measurements
* Saving 10 Waveforms and 10 setup parameters
* Convenient USB Port interface
TECHNICAL SPECIFICATIONS :
Bandwidth DC – 25MHz / DC – 50MHz
Channels 2 + External
Display 5.7 inch LCD Color (320 x 240 resolutions)
Acquisition
Mode Sample, Peak detect, Averaging
Sample Rate (real time) 250MS/s/500MS/s
Input
Input coupling : DC, AC, GND
Input Impedance : 1M ohm +- 2% in parallel with 20pF +- 3pF
Probe attenuation factors : 1 X, 10X, 100X, 1000X
Max Input Voltage : 400V (DC+AC Peak, 1 M input
impedance)
Horizontal system
Record length : Max 512K points
Time Base Range : 20ns/div ~50s/div/5ns/div ~ 50s/div
(step as 1~2~5)
Time Base Accuracy +- 100 ppm
Vertical system
Vertical Resolution : 8 bits
Vertical sensitivity : 2mV/div~5V/div/1mV/div ~ 20V/div
(Input to BNC)
Position Range : 10 div
Single bandwidth : Full bandwidth
LF Respond (AC, -3dB) : 10Hz (to BNC)
Rising time (Typical on BNC) : 14 ns =7ns
DC Gain Accuracy +- 4% (2mV / div, 5mV / div); +- 3% (10mV /div~5V /div)
Trigger
Trigger Mode : Edge, Pulse, Video
Trigger Slope (Edge ) : Rising, Falling
Trigger Mode (Edge ) : Auto, Normal and Single
Trigger Sensitivity (Edge ) : 1 div
Trigger Level Range (Edge )
AC Coupling : CH1 and Ch2 1 Div
Internal : 5 divisions from screen center
EXT : 3 V
EXT / 5 : 15 V
Trigger Level Accuracy +- Edge
Internal : 03 divisions
EXT : 40mV +- 6% setting value
EXT / 5 : 200mV +- 6% setting value
Trigger mode (Pulse ) : = position and negative pulse
Pulse width : 40ns-25s
Trigger Sync (Video ) Field, Line
Trigger sensitivity (VIDEO )
Internal : 2 divisions
EXT : 400 mV
EXT / 5 : 2V
Line / Field Frequency : Supports NTSC, PAL
(Video)
Measurement system
Automatic measurement : P K – P K , a m p l i t u d e , m a x i m u m ,
minimum, top, bottom, mean,
averaging, RMS, overshoot, Preshoot,
Frequency, Cycle, rise time,
fall time, Positive pulse, negative
pulse, positive duty ratio, negative
duty ratio delay 1-2/UP and delay 1-
2/DOWN
Waveform math : add, Substact, Multiply, Devide
Waveform storage : 10 waveform, 10 setups
Lissajou’s Figure : Available
FFT Window : Hanning, Hamming, Blackman,
Rectangle
FFT Acquisition points : 1024 points
Probe Comp Output
Output Voltage : Approx. 3V, PK-PK 1M loading
Frequency : 1kHz square
Power Supply
Voltage : 100~240 VAC, 50Hz, CAT II
Power Consumption : = 50 VA
Fuse : F 16 A L 250V
* Digital Storage OscilloscopePack of (Pcs): 1
SKU: 1100785
