Mechanics
Showing 1–16 of 176 results
-
Mechanics, Physics
Acceleration Motion Kit with Photogates
Catalogue No: 1030978
Useful to study the linear motion in plane and slopes. A 1 m long aluminum track graduated 0-900mm is supported on three adjustable support which can be located at any desired position along the length of the track. Raiced end of the track has a solenoid for release of steel sphere, whereas other end has knob for level adjustment to vary the slop of the track. Includes three photo gates and a steel ball of 19mm Dia. n* Acceleration Motion Kit, With Photogates
Pack of (Pcs): 1
SKU: 1030978 -
Mechanics, Physics

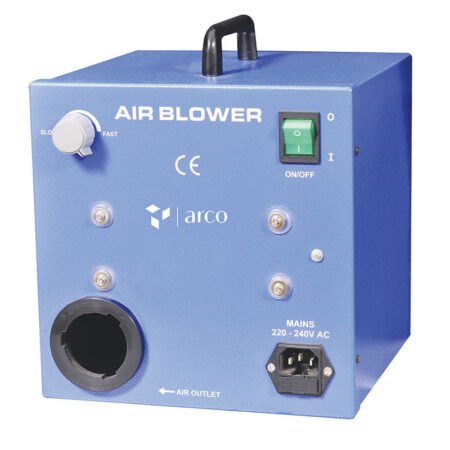

Air Blower, Deluxe
Catalogue No: 1031180/4
Specially designed, heavy duty, electrically operated air blower provides continuously variable air velocity control and is ideal for use with the Linear Air Track, Cat. No. 1031180/1. Complete assembly housed in a robust sheet metal case with anti skid rubber feetand fetature very low noise level. The compact size makes it suitable for bench top use. Designed for continuous, uninterrupted use. Supplied complete with flexible hose, hose adapter and detachable mains cable. Operates on 220-240V AC, 50Hz.
* Air Blower, DeluxePack of (Pcs): 1
SKU: 1031180/4 -
Mechanics, Physics
Air Blower, Deluxe
Catalogue No: 1031180/5
Specially designed, heavy duty, electrically operated air blower provides continuously variable air velocity control and is ideal for use with the Linear Air Track, Cat. No. 1031180/1. Complete assembly housed in a robust sheet metal case with anti skid rubber feetand fetature very low noise level. The compact size makes it suitable for bench top use. Designed for continuous, uninterrupted use. Supplied complete with flexible hose, hose adapter and detachable mains cable. Operates on 220-240V AC, 50Hz.

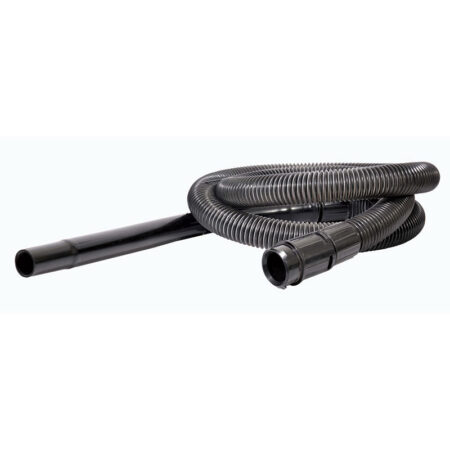

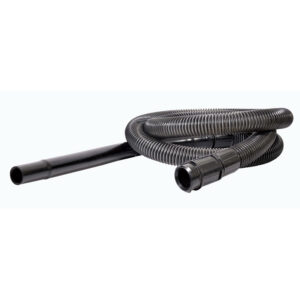

* Hose Pipe for Air BlowerPack of (Pcs): 1
SKU: 1031180/5 -
Mechanics, Physics

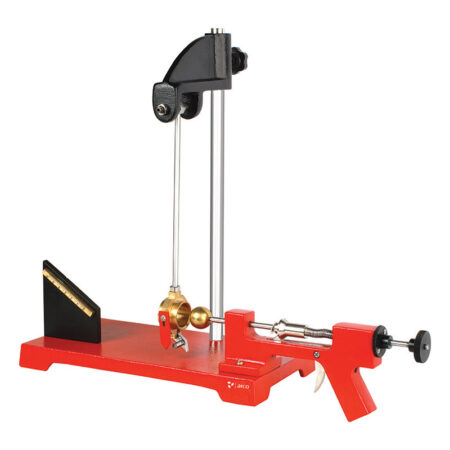

Ballistic Pendulum
Catalogue No: 1030830
Consists of a spring loaded launcher from which a ball can be launched horizontally and a block to catch the ball. The block is attached to a free swinging pendulum that moves to a maximum height where a pointer delineates its highest point of ascension. From this height kinetic energy of launched projectile and the pendulem can be ascertained using principle of conservation of momention. Includes spring loaded launcher monted on base that has 3 setting for 3 launching speeds, penduleum and block, scale and pointer to indicate heighest point of swing and a set of 3 balls of 13mm diameter, one each of brass, steel and aluminum.
* Ballistic PendulumPack of (Pcs): 1
SKU: 1030830 -
Mechanics, Physics

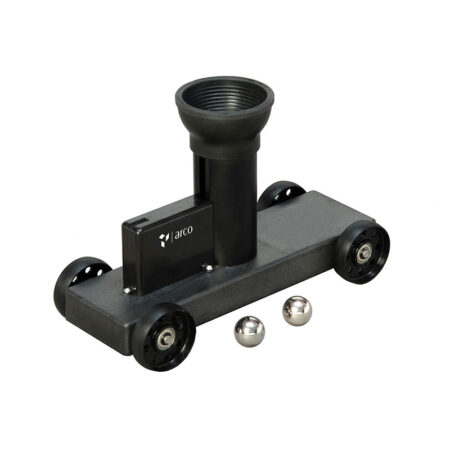

Ballistics Car
Catalogue No: 1031200
Useful for studying the vector quantities associated with the projectile motion and demonstrates that the horizontal component of velocity of the object projected from another object moving horizontally is same as that of the horizontally moving object and is independent of the vertical component of velocity of projected object at any instant.
Comprises a car made of heavy gauge Aluminum with 4 low friction bearing wheels. The car has a cylindrical barrel mounted vertically at its top which houses a spring loaded piston for shooting the ball vertically. The two locking position of the spring loaded piston arrangement provides two different and reproducible vertical projection velocities. Includes a steel sphere and a lock pin with cord.
* Ballistics CarPack of (Pcs): 1
SKU: 1031200 -
Mechanics, Physics
Bench Clamp Fitting Pulley-Cast Metal, 50mm
Catalogue No: 1030240/1
Comprising a 50mm diameter Aluminium pulley mounted in a frame on cone bearings, meant primarily for clamping to the edge of a work-bench, table etc., with the pulley overhanging the edge and in a vertical plane. Overall length of frame (pulley bar) about 110mm. Maximum clamp opening 25mm.
* Pulley Dia: 50mm
* Frame: Cast Metal
* Pulley Material: AluminiumPack of (Pcs): 1
SKU: 1030240/1 -
Mechanics, Physics
Bench Clamp Fitting Pulley-Sheet Metal, 50mm
Catalogue No: 1030240/2
Comprising a 50mm diameter Plastic pulley mounted in a frame on cone bearings, meant primarily for clamping to the edge of a work-bench, table etc., with the pulley overhanging the edge and in a vertical plane. Overall length of frame (pulley bar) about 110mm. Maximum clamp opening 25mm.
* Pulley Dia: 50mm
* Frame: Sheet Metal
* Pulley Material: SteelPack of (Pcs): 1
SKU: 1030240/2 -
Mechanics, Physics
Body Of Irregular Shape
Catalogue No: 1030615
An irregular shaped body fitted with a linear scale at its centre of gravity. Complete surface drilled with 2mm holes at every 1cm interval. Irregular body is fitted with a ball bearing and supported on a magnetic base.
* BODY OF IRREGULAR SHAPEPack of (Pcs): 1
SKU: 1030615 -
Mechanics, Physics

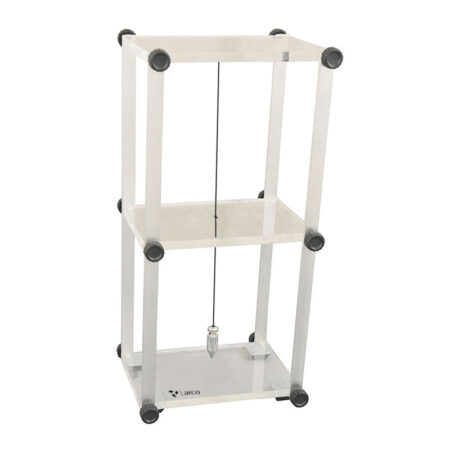

Center of Gravity
Catalogue No: 1030490
Three rectangular acrylic plates fixed one above the other through four supports at their corners in such a way to allow their free horizontal movement, along with a plumb line to demonstrate that center of gravity of solid passes through its support polygon.
* Eccentricity of Center of GravityPack of (Pcs): 1
SKU: 1030490 -
Mechanics, Physics

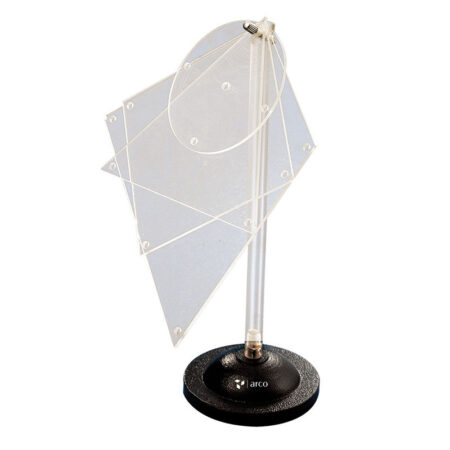

Center of Gravity Apparatus
Catalogue No: 1030500
A simple and economical apparatus for demonstration of geometrical center of gravity of two-dimensional objects. Center of gravity of a freely suspended two dimensional object always lies along the line drawn vertically downward from its point of suspension. Comprises a clear perspex rod mounted on a base with a suspension screw at the top and four laminas of clear acrylic, one each of circular, triangular, square and trapezoidal shape. Each lamina has suspension holes along their periphery. The point of intersection of lines drawn from point of suspension of 2 or more holes oF x Lamina gives center of gravity of that 2-dimensional lamina.
* Center of Gravity ApparatusPack of (Pcs): 1
SKU: 1030500 -
Mechanics, Physics
Center of Gravity Apparatus, Metal
Catalogue No: 1030501
For demonstrating the comcopt of center of Gravilly of 2D laminas in a way suitable to Cat. No. 1030500. 2D geometrical shapes of metal circle, equitaterial triangle, rectangle, square and trapezoid are provided with holes ofr their surpension to study their vertical lines of suspension. Comes with a metal rod mounted on base.
* Metal Sheets with Plumb BobPack of (Pcs): 1
SKU: 1030501 -
Mechanics, Physics
Collision in Two Dimensions
Catalogue No: 1030650
A simple and economical apparatus for studying conservation of momentum and conservation of kinetic energy in collisions. Can also be used to compare elastic collisions with inelastic collisions. Comprises a curved metal track mounted vertically on a horizontalwooden board with an adjustable target support.Aplumb bob attached to the target support provides height of point of collision from the ground and the position on the ground that corresponds to the point of collision. Supplied with two steel balls, a glass ball for near elastic collision and a light weight hollow wooden ball for inelastic collisions.
* COLLISION IN TWO DIMENSIONSPack of (Pcs): 1
SKU: 1030650 -
Mechanics, Physics

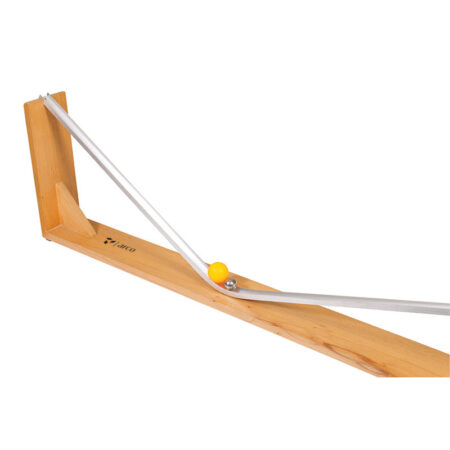

Conservation of Energy Track
Catalogue No: 1030645
This simple device comprising a large track is quite useful in demonstrating the conversion of potential energy into linear and rotational kinetic energy and again back into potential energy. The Vshaped metal track has unequal arms, but their highest points are at equal height, so as to form two adjacent inclined tracks of in equal lengths (hence unequal angle of inclinations) and is supported on 1.5m long wooden base. The concept is beautifully illustrated when balls of different materials, (One metal – 25mm and one plastic- 40mm included) are rolled down the track from either end.
* Conservation of Energy TrackPack of (Pcs): 1
SKU: 1030645
