Mechanics
Showing 97–112 of 176 results
-
Mechanics, Physics

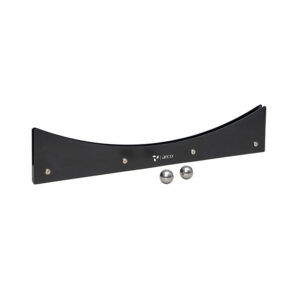

Pendulum, Stringless
Catalogue No: 1030825
Students will see the period of an oscillating body from a different perspective than the standard string and ball. The period of the 19mm mild steel ball can be measured and the distance to a focal point can be calculated to compare the observatious to that of a classic pendulum. Includes a pair of 19mm Mild Steel Balls. Dimensions 500 x 32.5 x 12.5mm approx.
* Pendulum, StringlessPack of (Pcs): 1
SKU: 1030825 -
Mechanics, Physics

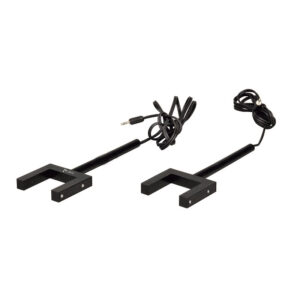

Photo Gates
Catalogue No: 1030955_1
This pair of photo gates can be used with Cat. No. 1030951 & Cat. No. 1030956.
The photogates when connected trigger a pulse whenever an object passes through the space between its arms. Maximum width or diameter that can pass through the arms of photogate is 40mm.
* Photo GatesPack of (Pcs): 1
SKU: 1030955_1 -
Mechanics, Physics

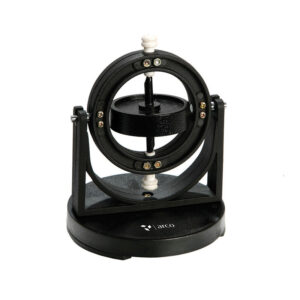

Precision Gyroscope
Catalogue No: 1031460
A traditional piece of equipment for exploring the principle of conservation of angular momentum and other associated phenomena of gyroscope like gyroscopic stabilization, inertial guidance, gyrocompass, principle of precession etc. Comprises a heavy metal roller disc, dynamically balanced, with metal shaft mounted in cone bearings carried on a plastic gimbal ring for smooth, low friction motion. The shaft has a hole towards one side of rotor disc for winding of thread to spin the rotor. This easily removable assembly can either be placed on cradle mounted, on simple plain base or on a rocking base for studying the concept of rolling or pitching. Shaft seat has provision on the outside for suspending washers through hook for loading to study the precession. Supplied complete with winding cord, S-shaped hook and set of washers for loading.
* Precision GyroscopePack of (Pcs): 1
SKU: 1031460 -
Mechanics, Physics

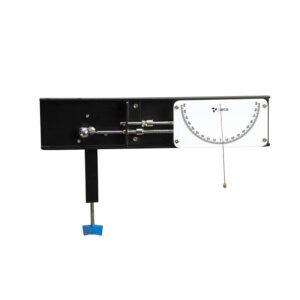

Projectile Launcher
Catalogue No: 1030870
For exploring the projectile motion and underlying concepts. On releasing the launcher with compressed spring, the holed metal ball loaded at the end of the launcher is projected in the air. The velocity of projection can be adjusted by changing the compression level of the spring. Rotating clamp provided for easy clamping of the apparatus to the workbench and to vary angle of projection from 0 to 90 degree, which can be read along the plumb line from protractor graduated 90-0-90 Degree. Also included 3 balls – one each of aluminum, steel and lead of diameter 25mm.
* Projectile Launcher
Pack of (Pcs): 1
SKU: 1030870 -
Mechanics, Physics

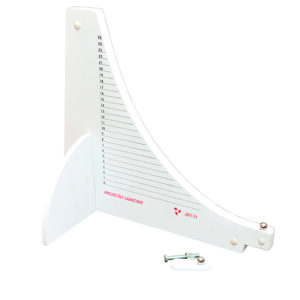

Projectile Launcher
Catalogue No: 1030895
It consists of a grooved curved wooden track supported on a wooden stand, which can be easily removed from the track for storage. It balls to be launched at different speeds depending upon the height of release of balls. The height of release of balls can be read directly from vertical scale graduation in cm. This allows investigation into a number of different aspects of energy and momentum studies. Also included are a clip on unit that allows two-dimensional collisions to be studied and one ball metal and one marble.
* PROJECTILE LAUNCHERPack of (Pcs): 1
SKU: 1030895 -
Mechanics, Physics

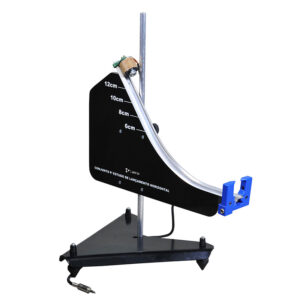

Projectile Launcher with Photo Gate
Catalogue No: 1030898
Comprises an aluminum track supported by a metal rod on a stable base with level adjuster knobs. A vertical scale helps in holding the height of the release of projecting ball through a solenoid. The instrument allows metallic balls to be launched at different horizontal speeds depending upon the height of release of balls and timing its travel using photogate system. This allows investigation into a number of different aspects of energy and momentum studies.
Accessories included:
* Solenoid, 5V operated
* MS Ball
* Photo-gate
* Projectile Launcher with Photo GatePack of (Pcs): 1
SKU: 1030898 -
Mechanics, Physics

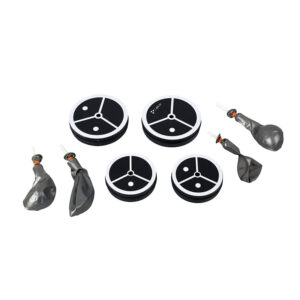

Puck Set, Set of 4
Catalogue No: 1031112
Pre-assembled Pucks set with a hole at the center comprising a pair each of 7cm and 9cm Dia. Useful for studying motion in near frictionless conditions. Also included are four sets each of balloons, stoppers and connecting tubes. Comes ready for stroboscopic flash photography.
* Puck Set, Set of 4Pack of (Set): 1
SKU: 1031112 -
Mechanics, Physics

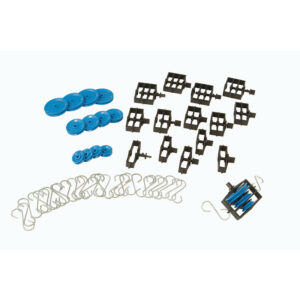

Pulley Block Assembly Set
Catalogue No: 1030180
A set of components from which pulley blocks of different configurations. Set contains:
A) 15 plastic pulley frames : 5 each of single, double and triple sheave. Each provided with removable central axle pins and a pair of hooks.
B) 30 plastic pulleys : 10 each of diameters 25, 38 and 50mm.
* Pulley Block Assembly SetPack of (Pcs): 1
SKU: 1030180 -
Mechanics, Physics
Pulley Block, Deluxe

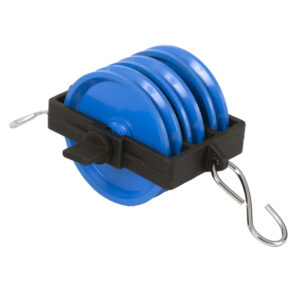

Catalogue No: 1030160/7
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Triple pulley block, with all pulleys of 50mm diameterPack of (Pcs): 1
SKU: 1030160/7 -
Mechanics, Physics
Pulley Block, Deluxe

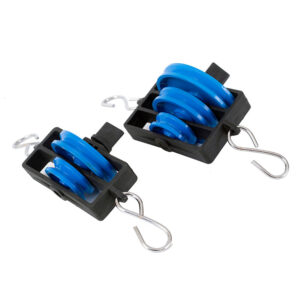

Catalogue No: 1030160/8
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Triple pulley block, with 25, 38 and 50mm pulleysPack of (Pcs): 1
SKU: 1030160/8 -
Mechanics, Physics
Pulley Block, Deluxe

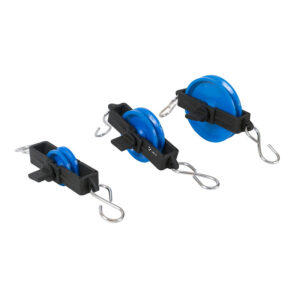

Catalogue No: 1030160/1
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Single pulley block, with 25mm pulleyPack of (Pcs): 1
SKU: 1030160/1 -
Mechanics, Physics

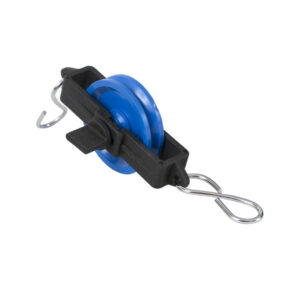

Pulley Block, Deluxe
Catalogue No: 1030160/2
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Single pulley block, with 38mm pulleyPack of (Pcs): 1
SKU: 1030160/2 -
Mechanics, Physics

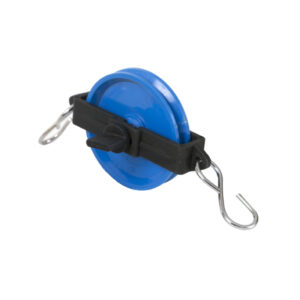

Pulley Block, Deluxe
Catalogue No: 1030160/3
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Single pulley block, with 50mm pulleyPack of (Pcs): 1
SKU: 1030160/3 -
Mechanics, Physics
Pulley Block, Deluxe
Catalogue No: 1030160/4
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Double pulley block, with both pulleys of 50mm Dia. n
Pack of (Pcs): 1SKU: 1030160/4 -
Mechanics, Physics

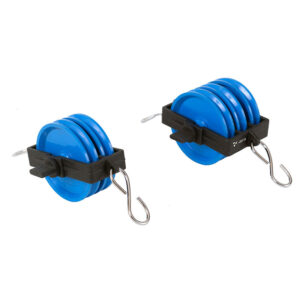

Pulley Block, Deluxe
Catalogue No: 1030160/5
Plastic pulleys mounted in tough, unbreakable plastic frames having hooks at both ends for suspension and loading. The frames are available in single, double and triple sheave. Specially designed central axle pin with locking mechanism can be easily inserted and locked or removed for quick assembly / disassembly of the pulley block. Overall length of frames about 70mm. Pulley configurations available are:
* Double pulley block, with 38 and 50mm pulleysPack of (Pcs): 1
SKU: 1030160/5
