Metrology or Measuring Instruments

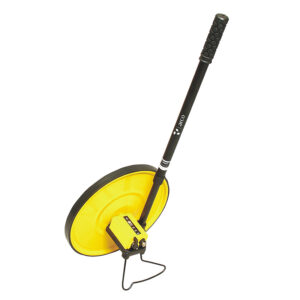

Catalogue No: 2011000/2

Provides quick and convenient distance measurement, especially where measurement is not along a straight line. The measurement Accuracy +-f wheels conform to class 1 of OIML standards. Incorporates five digits mechanical counter, with quick reset lever and 1st four digits reads meters while 5th digit reads 1/10th of meter, thus giving a minimum reading of 0.1m or 10cm. Specially designed mechanism measures both forward and backwards, i.e., subtracts the measurement when retracting steps. Comes in a nicely designed bag for comfortable carrying and storage.
* Made of robust metal wheel of circumference 1m for more demanding conditions and provides non-slip grip for precise measurement. Comes with a two section
telescopic handle.

Pack of (Pcs): 1

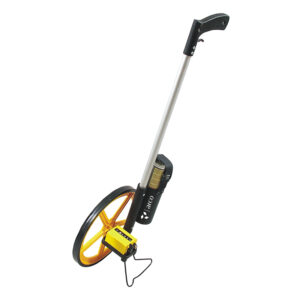

Catalogue No: 2011000/3

Provides quick and convenient distance measurement, especially where measurement is not along a straight line. The measurement Accuracy +-f wheels conform to class 1 of OIML standards. Incorporates five digits mechanical counter, with quick reset lever and 1st four digits reads meters while 5th digit reads 1/10th of meter, thus giving a minimum reading of 0.1m or 10cm. Specially designed mechanism measures both forward and backwards, i.e., subtracts the measurement when retracting steps. Comes in a nicely designed bag for comfortable carrying and storage.
* Measuring wheel having paint marking system. Specially designed one piece handle with pistol grip and trigger release mechanism to spray paint on target.

Pack of (Pcs): 1

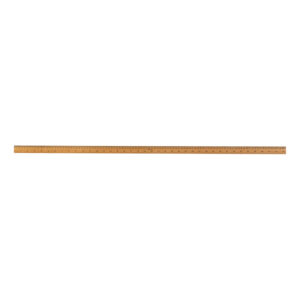

Catalogue No: 2010600/2

Made of hardwood, length 1m amd width 25mm, clear printing marked every centimeter.
* Horizontal reading, double scale reading in centimeters, both edges graduated 1-100cm x 1mm.

Pack of (Pcs): 1

Catalogue No: 2010600/3

Made of hardwood, length 1m amd width 25mm, clear printing marked every centimeter.
* Vertical reading, both edges graduated 1-100cm x 1mm, figured every cm at the center with zero at the top.

Pack of (Pcs): 1

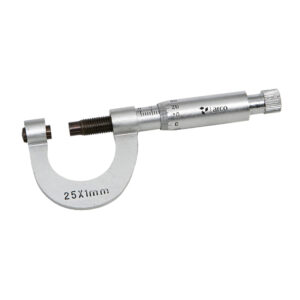

Catalogue No: 2010320/1

MICROMETER (SCREW GAUGE)
* Same as Cat. No. 2010280, but with tempered steel rod in place of SS rod and with locking mechanism

Pack of (Pcs): 1

Catalogue No: 2010320/2

MICROMETER (SCREW GAUGE)
* Same as Cat. No.. 2010320/1, but without locking mechanism

Pack of (Pcs): 1

Catalogue No: 2010280

Precision machined threaded SS rod that remains concealed and provides long life error free functioning. Range 0-25 x 0.01mm.
* Micrometer (Screw Gauge)

Pack of (Pcs): 1

Catalogue No: 2010360

Highly sensitive and accurate screw gauge that also incorporates digital scale along with the micrometer. Well painted hardened steel body with stainless steel ratchet and thimble. Large LCD display with functions including measurement in both mm and inches, tolerance setting, data hold, relative / absolute measurement, positive / negative setting and origin resetting, auto power off. Digital scale range 0-1 Inch x 0.00005 Inch or 0-25 x 0.001mm with Accuracy +-f 0.002mm. Micrometer 0-25 x 0.01mm. With ratchet lock. Operates on button cell-SR44 (1.55V), cell included. Supplied in a foam lined, plastic case. Also includes spanner for replacement of battery.
* Micrometer (Screw Gauge), Digital

Pack of (Pcs): 1
