Metrology or Measuring Instruments

Catalogue No: 2010760/5

Horizontal reading, one edge graduated in mm and figured every cm, other edge graduated 1/8th of inch and figured every inch. Special etching on the surface for long life, water proof and washable graduations and has a hole on one side for hanging. Back of the ruler has inches-mm conversion table. Sizes available are
* 2m / 80 Inch

Pack of (Pcs): 1

Catalogue No: 2011200

It can be used along all the six directions of the 3-D axes. A dovetailed cast metal carriage slides on a heavy cast iron base. By successively locking and unlocking, motion in the total traverse is available through the slow motion screw. Two holes are provided with clamping screws to hold the microscope in either vertical or horizontal plane. Focusing of the microscope available through a knob. With total Horizontal movement of about 160mm, Mains scale graduated 0.5mm with vernier
giving a Least count of 0.02mm. Working distance 50mm, Ramsden type eye piece with cross-line graticule. Also includes a swing-out magnifier for reading the vernier and a removable flat horizontal stage for positioning the sample/object under observation. Supplied in wellpolished wooden case.
* Six Position Microscope

Pack of (Pcs): 1

Catalogue No: 2013360/2

A set of slotted masses and hanger of cast iron particularly suitable for use where larger suspension loadings are needed such as with sonometers.
*Other range also available on specific request.
* Set of 2.5 Kgs: One Hanger of 0.5kg with four slotted masses of 0.5kg each

Pack of (Set): 1

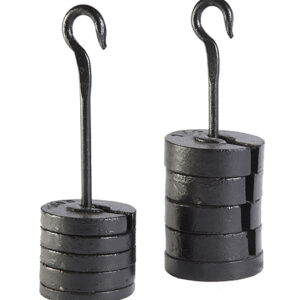

Catalogue No: 2013360/3

A set of slotted masses and hanger of cast iron particularly suitable for use where larger suspension loadings are needed such as with sonometers.
*Other range also available on specific request.
* Set of 5 Kgs: One Hanger of 0.5kg with nine slotted masses of 0.5kg each

Pack of (Set): 1

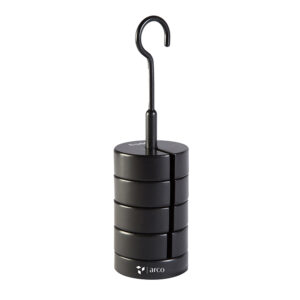

Catalogue No: 2013380/4

Made of iron rod instead of cast iron.
*Other range also available on specific request.
* Set of 20.5Kg: One Hanger of 1kg with slotted masses one each of 10, 5, 2 and 1kg and three slotted masses of 0.5kg each, well painted

Pack of (Pcs): 1

Catalogue No: 2013380/5

Made of iron rod instead of cast iron.
*Other range also available on specific request.
* Set of 2.5Kg: One Hanger of 1kg with four slotted masses of 1kg each. Chrome Plated.

Pack of (Pcs): 1

Catalogue No: 2013380/8

Made of iron rod instead of cast iron.
*Other range also available on specific request.
* Set of 20.5Kg: One Hanger of 1kg with slotted masses one each of 10, 5, 2 and 1kg and three slotted masses of 0.5kg each. Chrome Plated.

Pack of (Pcs): 1

Catalogue No: 2013380/1

Made of iron rod instead of cast iron.
*Other range also available on specific request.
* Set of 5Kg: One Hanger of 1kg with four slotted masses of 1kg each, well painted

Pack of (Pcs): 1
