Optics

Catalogue No: 1110840/2

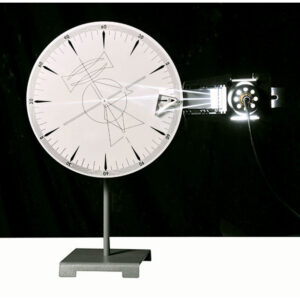

For exploring the various concepts of optics involving reflection and refraction using ray tracing technique. Comprises a sheet metal disc, about 30cm in diameter, painted white with provision for mounting it on a vertical support rod in either of horizontal or vertical plane and is rotatable about its axis. It has a circular scale graduated 90-0-90-0-90 x 1 degree and divides the disc in four equal quadrants with its center clearly marked. Shapes of various optical elements also clearly marked on the disc to facilitate their placement while performing experiments. It also has provision for mounting adjustable lamp holder with an adjustable collimating lens to get divergent, convergent or parallel beam as required. A rotatable disc attached in front of collimating lens provides option of single, double, triple or quadruple slits for range of experiments. Complete assembly mounted on stable cast metal heavy base. Supplied complete with reflective components : one each of plane glass mirror, polished semi-circular cylindrical mirror; and set of 6 refractive components of acrylic : one each of semicircular, bi-convex, bi-concave, right angled prism, equilateral prism and trapezoidal prism. All optical elements provided with strong magnets at their bottom for locating them on the disc in either of horizontal or vertical disc position. The bottoms of all refractive components are frosted to minimize internal reflections and revealing the path of light as it passes through.
* Set of 6 Optical elements, one each of semi-circular, bi-convex, bi-concave, right angled prism, equilateral prism and trapezoidal prism, packed in a case for use with Hartle’s Optical Disc

Pack of (Set): 1

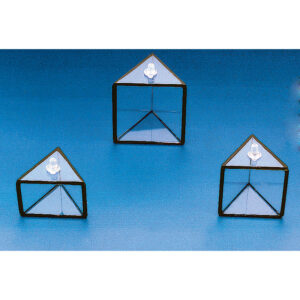

Catalogue No: 1110460/2

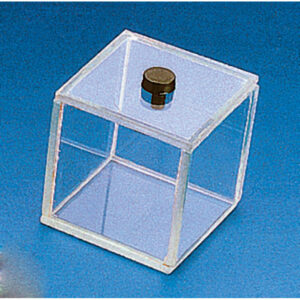

For studying and comparing the optical properties of liquids and determination of their refractive index by filling them in the hollow optical shapes. Made from glass plate. All shapes have opening lid at the top for pouring the liquid. Sizes and shapes available are:
Other Sizes also available on specific request.
* 50 x 50mm, Hollow Prism

Pack of (Pcs): 1

Catalogue No: 1110460/1

For studying and comparing the optical properties of liquids and determination of their refractive index by filling them in the hollow optical shapes. Made from glass plate. All shapes have opening lid at the top for pouring the liquid. Sizes and shapes available are:
Other Sizes also available on specific request.
* 38 x 38mm, Hollow Prism

Pack of (Pcs): 1

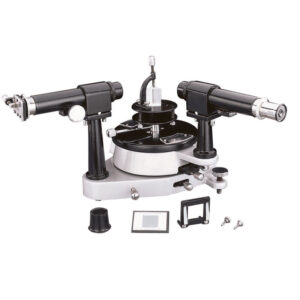

Catalogue No: 1111520

More robust and provides better performance. The main structure is of heavy cast metal, with bright plated fittings. The complete instrument is supplied in wooden case.
Scale:150mm diameter circle with protective plastic shield is fixed to the telescope movement and the table is attached to a double ended vernier, which reads to 1 minute of arc. Both telescope and table rotation has fine adjustment screws and release of a clamping screw enables adjustment of both movements to be made by hand.
Collimator: Mounted on fixed pillar and fitted with achromatic objectives with FL 178mm, 25mm clear aperture. Also fitted is a unilaterally adjustable slit 7mm long.
Telescope: Mounted on moveable pillar and fitted with achromatic objective with FL 178mm, 25mm clear aperture. Also fitted is a 8x Ramsden eyepiece and a glass cross line graticule.
Prism Table: The table is marked with lines to assist placing the prism with respect to the table leveling screws.
Both the telescope and collimator have rack and pinion focusing incorporates provision for leveling the axis of collimator and telescope along the axis of rotation.
Standard Accessories Supplied: 1 Prism clamp, 1 diffraction grating holder, 1 magnifier, 1 wooden case.
* Intermediated Spectrometer

Pack of (Pcs): 1

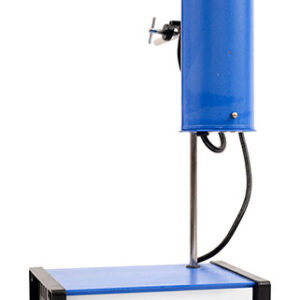

Catalogue No: 1111720

Features:
* Suitable for Mercury Vapour Lamp.
* Provides steady lamp output of high intensity.
* Completely self-contained assembly.
Technical Specifications:
* Operating voltage: 220V AC, 50/60Hz.
* Power: 80W (max.)
* ES cap type porcelain lamp holder.
* Lamp House & Transformer

Pack of (Pcs): 1

Catalogue No: 1111030

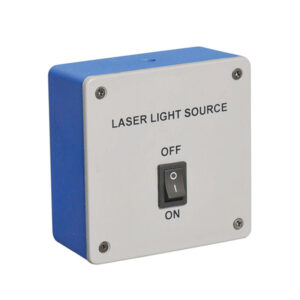

Low power diode laser is housed in a plastic box, used for ray optics demonstration and simple diffraction work. Can also be used as a pointer to indicate and point on overhead images, charts or presentations. The output is in the form of visible red spot with a sharp focused beam of wavelength 630-680nm with only 1mw power consumption. Operates on 2 Nos AA cells.
* Laser Light Source

Pack of (Set): 1

Catalogue No: 1110710

No more burnt finger, this LED Ray box housed in a traditional diecast enclosure.
Features:
* Ultra cool temperature .
* Long life LED rated 10000 hours life.
* White light closer to real sun light.
* Provides better then most conventional 24W Ray boxes.
* Rays are more continuous with uniform intensity.
* Complete with power adaptor, Lens and Slit Plate.
* Led Ray Box

Pack of (Pcs): 1

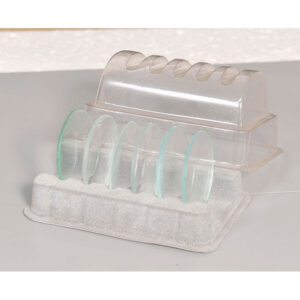

Catalogue No: 1110065

Supplied in plastic tray with cover. Lenses of diameter 50mm.
* Lens, set of 6

Pack of (Pcs): 1
