Mechanics, Physics
Digital Timer For G By Free Fall
Catalogue No: 1030916_1
Timer specially designed for use with g By Free Fall Apparatus Cat. No. 1030915.
Features:
* SMPS based, universal input voltage.
* Timing in micro-second, milli-second, second with indicators (Auto-Change).
* 5-digit seven segment display.
* Positive edge trigger and level trigger mode.
* Sturdy push switches for stopwatch & reset.
* Can be used as timer as well as stopwatch.
* Provides power to electromagnet also in Cat. No. 1030915.
* Digital Timer for g By Free FallPack of (Pcs): 1
SKU: 1030916_1 -
Electronics, Physics
Digital to Analogue Converter
Catalogue No: 1100235
Working of Digital to Analogue Converter is just reverse of the working of Analogue to Digital Converter (Cat. No. 1100225). Digital to analogue converter circuit is internally fitted inside a plastic box of size 142x80x40mm approx. It will accept a 3-bit binary input and convert it into a 0-5V analogue output. Operates on mains 220V AC.
* Digital to Analogue ConverterPack of (Pcs): 1
SKU: 1100235 -
Heat, Physics
Digital Wattmeter
Catalogue No: 1060946
Digital Wattmeter can be used for measuring the electric power (or the supply rate of electrical energy) in watts of any given circuit / load either AC or DC.
Features:
* Power switch along with primary fuse protection.
* 3.5 digits readout.
* Toggle switch for selecting AC/DC input.
* 4mm safety sockets.
Technical Specifications:
* Input voltage 220V AC (Also available for 110V AC, on request)
* Primary Fuse 500mA
* Maximum input for the load 12V, 10A AC/DC
* Digital WattmeterPack of (Pcs): 1
SKU: 1060946 -
Optics, Physics

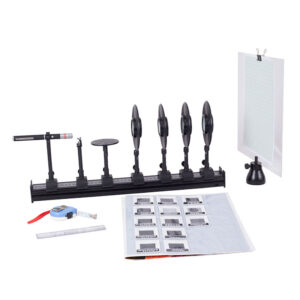

Diode Laser Kit
Catalogue No: 1110922
For advanced activities in wave optics using simple laser source.
Kit consists of:
* Diode Laser (Wave Length: 650nm, Input Voltage: 3V) 1 No.
* Optical Bench (Scale: 50cm graduated in mm) 1 No.
* Object Riders 3 Nos.
* Object Screen with Clip 1 No.
* Set of 13 Objects 1 Set
(Consists of 13 objects: Single Slit, Double Slit, object with 3 slits, object with 4 slit, object with 5 slits, Single Tapered Slit, Fine Grating, object with 4 holes, object with Circular Opaque Spot, Grey Filter, object with Mesh, Coarse Grating and object with Grid Pattern.) Frame size: 50 x 50mm
* Slit Holder 1 No.
* Measuring Tape 3m 1 No.
* Scale 1 No.
* Cylindrical Base 1 No.
* Laser Mount 1 No.
* Diode Laser KitPack of (Set): 1
SKU: 1110922 -
Magnetism & Electromagnetism, Physics
Dip Circle
Catalogue No: 1070680
For determination of angle of dip at a location on earth’s surface. An accurately balanced magnetic needle having strong magnetic field is fitted to enable its movement along horizontal axis on hardened steel pivot marking in jewels cup bearings. It is free to rotate along a circular scale divided in four quadrants, graduated 90 degree-0-90 degree-0-90 degree for reading the inclination of needle. The needle can be easily removed for reversal. Needle and scale housed in a non-magnetic metal casing with a glass window, both of which capable of rotating about vertical axis on a cast metal base. The vertical rotation can be read directly from a circular scale fitted on base, graduated 0-360 degree Fitted with leveling screw and spirit level.
* DIP CIRCLEPack of (Pcs): 1
SKU: 1070680 -
Magnetism & Electromagnetism, Physics
Dip Needle, Simple
Catalogue No: 1070660
Comprising a quadrant-shaped scale graduated 0-90 degree with cobalt steel magnetic needle about 10cm long, supported vertically on a circular base marked every 45 degree about which it can fully rotate. All parts except needle are of non-magnetic material.
* Dip Needle, SimplePack of (Pcs): 1
SKU: 1070660 -
Optics, Physics

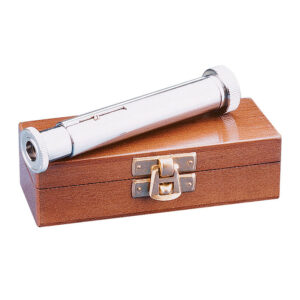

Direct Vision Spectroscope in Wooden Box
Catalogue No: 1111460
Useful for rapid qualitative observation of composition of emission and absorption spectra. Al the principal components collimator, prism and telescope, all arranged in one metal tube. The tube has adjustable slit at one end and draw tube with eyepiece at other end. Features achromatic objective glass and multi element prism causing appreciable dispersion of light without deviation. Supplied in a velvet lined wooden case.
* Direct Vision SpectroscopePack of (Pcs): 1
SKU: 1111460 -
Electronics, Physics
Direction of Current
Catalogue No: 1100416
Red and Green LED’s with two 4mm safety sockets fitted on a transparent base of size 100 x 90 x 65mm approx., in such a way to indicate the direction of current flowing in the closed loop.
* Direction of a CurrentPack of (Pcs): 1
SKU: 1100416 -
Mechanics, Physics
Disc For Moment Of Inertia With Magnet
Catalogue No: 1030610
A circular plastic disc of diameter 175mm having a bearing at the center and supported on magnetic base. The disc has holes at 1cm interval on each of 12 radial lines, 30 Degree apart.
* DISC FOR MOMENT OF INERTIA WITH MEGNETPack of (Pcs): 1
SKU: 1030610 -
Electrostatics, Physics
Discharger
Catalogue No: 1080260/1
For discharging the charged object in electrostatics activities. Small plated brass spheres mounted on curved arms, joined together and mounted on insulating handle. Can also be used for transferring charges from a charged object.
* Bigger, overall length about 30cmPack of (Pcs): 1
SKU: 1080260/1 -
Electrostatics, Physics
Discharger
Catalogue No: 1080260/2
For discharging the charged object in electrostatics activities. Small plated brass spheres mounted on curved arms, joined together and mounted on insulating handle. Can also be used for transferring charges from a charged object.
* With two handles, in scissors shaped pattern, overall length about 20cmPack of (Pcs): 1
SKU: 1080260/2
