Electricity & Electrical Circuits, Physics
Potentiometer
Catalogue No: 1091140/1
Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
Supplied with jockey.
* Single Wire (1m), On Polished Wooden BasePack of (Pcs): 1
SKU: 1091140/1 -
Electricity & Electrical Circuits, Physics
Potentiometer
Catalogue No: 1091140/2
Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
* Double Wire (2m), On Polished Wooden BasePack of (Pcs): 1
SKU: 1091140/2 -
Electricity & Electrical Circuits, Physics
Potentiometer
Catalogue No: 1091140/3
Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
* Single Wire (1m), On Painted Metal BasePack of (Pcs): 1
SKU: 1091140/3 -
Electricity & Electrical Circuits, Physics
Potentiometer
Catalogue No: 1091140/4
Works on the principle of variation in the resistance of a conductor with length and useful as a potential divider for various electrical experiments such as in null point detection. Comprising a 24SWG bare constantan wire stretched along a meter rule (graduated in millimeters) and is clamped to brass plates. The clamping system is designed to make electrical contact with the wire at the exact ends of the scale thus virtually leaving no margin for end errors. The terminating strips are provided with heavy-duty 4mm socket terminals.
* Double Wire (2m), On Painted Metal BasePack of (Pcs): 1
SKU: 1091140/4 -
Electronics, Physics
Potentiometer, 10K Ohm
Catalogue No: 1100101
Potentiometer of 10kx is mounted on a specially designed transparent base of size 100x90x65mm approx. Suitable for desktop use. 4mm safety sockets are provided for connections. Resistance range 0-10kx smoothly variable. Power 3W (max.)
* Potentiometer, 10 KxPack of (Pcs): 1
SKU: 1100101 -
Physics, Power Supplies
Power Supply AC/DC
Catalogue No: 2040456
Low voltage AC/DC power supply for general purpose laboratory usage. The unit is equipped with a primary fuse and overload protection.
Technical Specifications:
* Input : 110V / 220V AC (Selectable), 50/60Hz
* Primary Fuse : 0.5A
* AC Output: 3, 6, 9,12V (Selectable)
* DC Output: 0-12V (Smoothly Variable)
* Current Rating: 3A
* Power Supply AC/DCPack of (Pcs): 1
SKU: 2040456 -
Physics

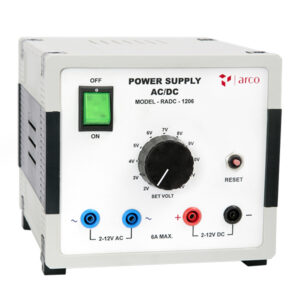

Power Supply AC/DC Stepped 12V, 6A
Catalogue No: 2040450
Provide both AC and DC variable voltage outputs in discreet steps, selectable through a positive click stop rotary knob, with maximum current rating of 6A. This power supply is sturdy and economic, useful for most of low-voltage experiments. It is equipped with a primary fuse and a thermal reset circuit breaker for overload protection.
SKU: 2040451 -
Physics, Power Supplies
Power Supply, DC Regulated, Stepped
Catalogue No: 2040161
This completely IC regulated power supply unit provides 11 fixed DC voltage outputs available at 3A current rating through a pair of 4mm colour coded safety sockets and selectable through a rotary knob with positive click stops. Output is overload and short circuit protected.
Technical Specifications:
* Input: 110/220V AC
* Output Voltage: 1.5, 2, 3, 4, 4.5, 5, 6, 8, 9, 10, 12V DC
* Output Current: 3A (max.)
* Power Supply, DC Regulated, SteppedPack of (Pcs): 1
SKU: 2040161 -
Physics, Power Supplies
Power Supply, PADC
Catalogue No: 2040881
AC and DC output voltage selectable U shaped plug with 4mm insert. Equipped with a primary fuse and overload protection.
Features:
* Rigid ABS construction.
* Stackable housing.
Technical Specifications:
* Input Voltage: 110/220V AC (Selectable), 50/60Hz, 0.4A
* Primary Fuse : 2A
* AC Output : 1-12V in step of 1V
* DC Output : 1-12Vin step of 1V
* Output Current: 6A (max.)
* Power Supply, PADCPack of (Pcs): 1
SKU: 2040881 -
Physics, Power Supplies
Power Supply, PADC-Lockable
Catalogue No: 2040921
Provided with a locking arrangement to prevent accidental removal or insertion of U shaped plug with 4mm insert, thus ensuring added safety to the operating equipment as well as power supply.
* Power Supply, PADC-LockablePack of (Pcs): 1
SKU: 2040921 -
Physics, Power Supplies
Power Supply, VADC
Catalogue No: 2040801
Low voltage AC/DC power supply for general laboratory usage.
Features :
* Primary fuse and overload.
* Smoothly variable output.
* Digital readout for voltage.
Technical Specifications:
* Input : 110V/220V AC (Selectable), 50/60Hz, 0.5A
* AC Output: 2-12V
* DC Output: 2-12V
* Current Rating: 6A (max.)
* Power Supply, VADCPack of (Pcs): 1
SKU: 2040801 -
Electronics, Physics
Power Transistor, N-P-N
Catalogue No: 1100181
2N3055 Power Transistor mounted on a specially designed transparent base of size 100x90x65mm approx 4mm safety sockets are provided for connection of Emitter, Base & Collector of Transistor.
* Power Transistor, N-P-NPack of (Pcs): 1
SKU: 1100181 -
Mechanics, Physics
Precision Gyroscope
Catalogue No: 1031460
A traditional piece of equipment for exploring the principle of conservation of angular momentum and other associated phenomena of gyroscope like gyroscopic stabilization, inertial guidance, gyrocompass, principle of precession etc. Comprises a heavy metal roller disc, dynamically balanced, with metal shaft mounted in cone bearings carried on a plastic gimbal ring for smooth, low friction motion. The shaft has a hole towards one side of rotor disc for winding of thread to spin the rotor. This easily removable assembly can either be placed on cradle mounted, on simple plain base or on a rocking base for studying the concept of rolling or pitching. Shaft seat has provision on the outside for suspending washers through hook for loading to study the precession. Supplied complete with winding cord, S-shaped hook and set of washers for loading.
* Precision GyroscopePack of (Pcs): 1
SKU: 1031460 -
Physics, Sensors
Pressure Sensor
Catalogue No: 1160085
With their broad range, these Pressure Sensors can be used to monitor a variety of pressure changes. Use them in class to demonstrate phenomena such as Boyle’s Law or Gay-Lussac’s Law.
* Pressure Kit sold separately
* Range 20 to 400 kPa or 0.2 to 3.9 atm or
200 to 4000 mbarPack of (Pcs): 1
SKU: 1160085 -
Magnetism & Electromagnetism, Physics
Primary and Secondary Coils
Catalogue No: 1070860
For exploring the concept of electromagnetic induction. Comprises two coils: primary coil wound from thicker gauge copper wire with lesser number of turns; and secondary coil wound from thinner gauge, fine copper wire with more number of turns. Both coils wound on a insulated plastic former and fitted with 4mm safety sockets. Primary slides into secondary for electromagnetic coupling. Includes soft iron cylindrical core that slides into primary.
* Primary and Secondary CoilsPack of (Set): 1
SKU: 1070860
