Magnetic Field Demonstration
Catalogue No: 1070360/4
For the study and demonstration of magnetic fields associated with different shapes / configurations of current carrying conductors. Mounted on clear transparent base permits its use on OHP for classroom demonstration. Each conductor accompanied with a pair of 4mm socket terminals. The field pattern can be observed through the iron filings or plotting compasses (not included). Comprises following conductor configurations:

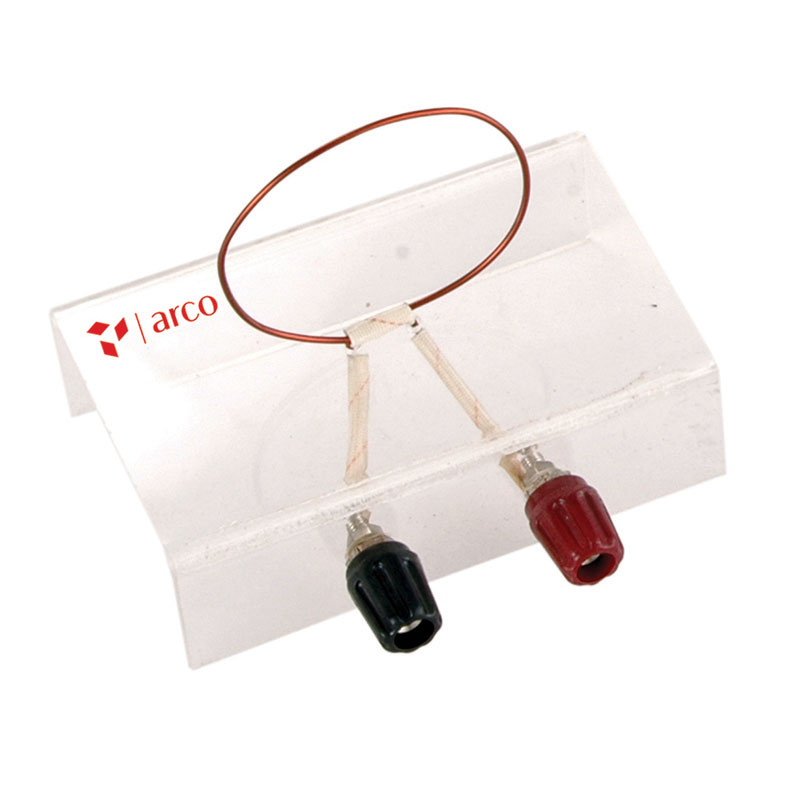

* Single, Circular Coil: Single turn circular coil of copper wire of 16 SWG mounted vertically on base. Coil diameter about 55mm. Maximum current is 8A.
Pack of (Pcs): 1
For the study and demonstration of magnetic fields associated with different shapes / configurations of current carrying conductors. Mounted on clear transparent base permits its use on OHP for classroom demonstration. Each conductor accompanied with a pair of 4mm socket terminals. The field pattern can be observed through the iron filings or plotting compasses (not included). Comprises following conductor configurations:
* Single, Circular Coil: Single turn circular coil of copper wire of 16 SWG mounted vertically on base. Coil diameter about 55mm. Maximum current is 8A.
