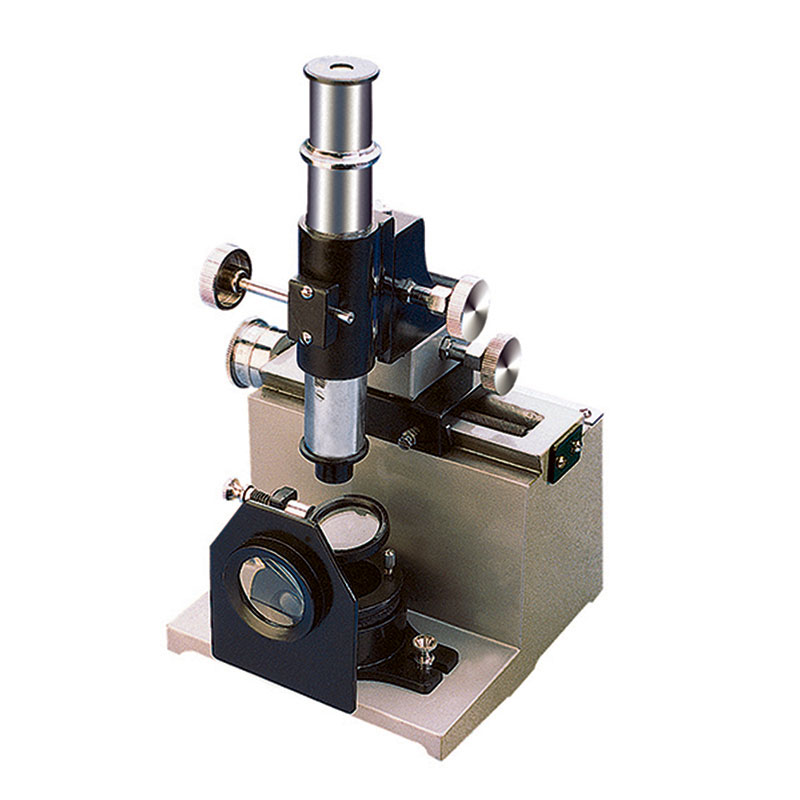

Microscope, Compact, Newton Rings
Catalogue No: 1110520
Specially designed microscope for use in Newton’s rings experiment. It houses an inbuilt light-reflecting unit for the experiment and the lightweight cast metal body has provision for positioning the Newton’s rings setup. The vertical motion of the microscope through a focusing knob. Horizontal motion along a metal carriage provided with a micrometer at one end for fine adjustment and reading the horizontal position with a LC of 0.01mm. The microscope has about 75mm working distance and comes with 8X eye piece, Ramsden type with cross line graticule.
* Microscope Compact Newton Rings
Pack of (Pcs): 1
Specially designed microscope for use in Newton’s rings experiment. It houses an inbuilt light-reflecting unit for the experiment and the lightweight cast metal body has provision for positioning the Newton’s rings setup. The vertical motion of the microscope through a focusing knob. Horizontal motion along a metal carriage provided with a micrometer at one end for fine adjustment and reading the horizontal position with a LC of 0.01mm. The microscope has about 75mm working distance and comes with 8X eye piece, Ramsden type with cross line graticule.
* Microscope Compact Newton Rings
