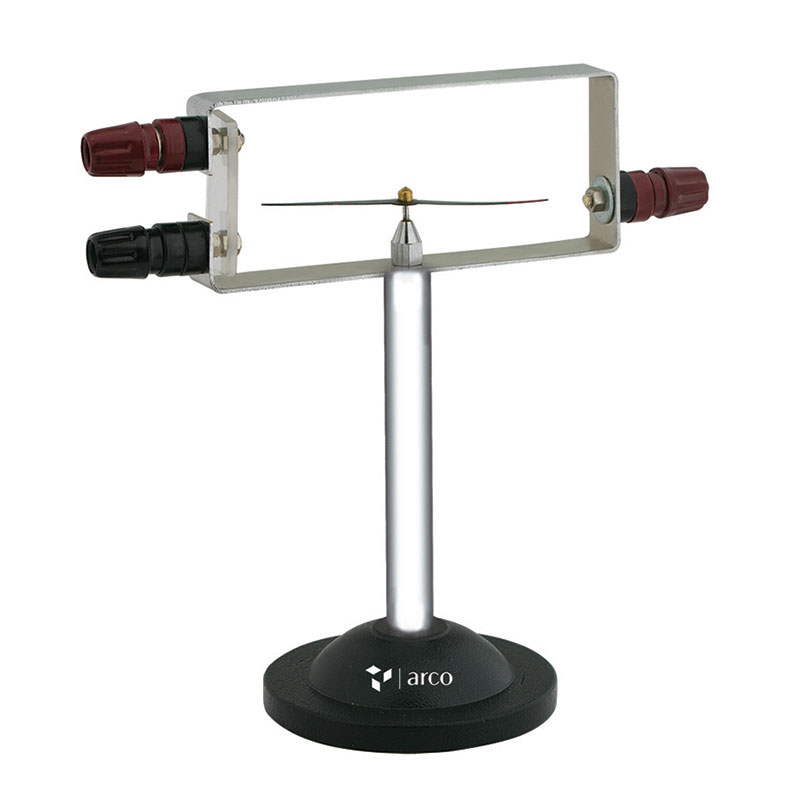

To show the effect of electric current on a magnet. Comprises a cobalt steel magnetic needle, about 75mm long, with agate bearing supported on pivot mounted on insulated pillar on base and surrounded by a rectangular frame of aluminum strip. Passing the current through nonmagnetic frame causes magnetic needle to deflect as per Oersted’s law.
* Oersted’s Law Apparatus
Magnetism & Electromagnetism, Physics
Oersted’s Law Apparatus
Catalogue No: 1070800
To show the effect of electric current on a magnet. Comprises a cobalt steel magnetic needle, about 75mm long, with agate bearing supported on pivot mounted on insulated pillar on base and surrounded by a rectangular frame of aluminum strip. Passing the current through nonmagnetic frame causes magnetic needle to deflect as per Oersted’s law.
* Oersted’s Law Apparatus
Pack of (Pcs): 1
