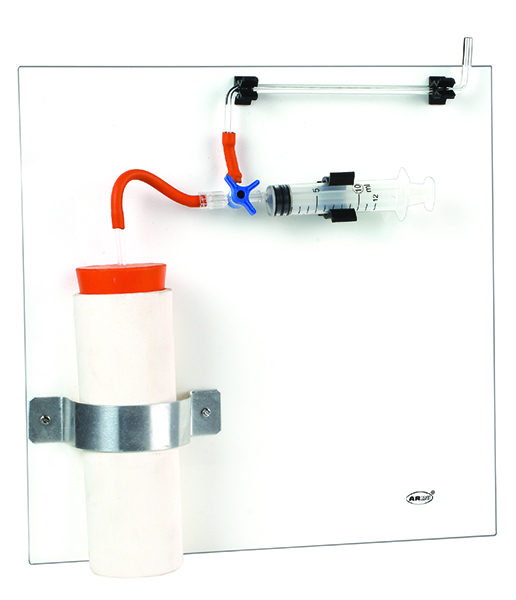

Use to measure transpiration, without breakage. Only one glass component (the capillary tube) and is mounted on strong backing plate. It consists of a capillary tube with millimetre scale connected via three way tap to a syringe. The cut shoot is connected to the third outlet. It can also be used to measure humidity by connecting a porous pot to the third outlet.
Potometer
Catalogue No. 4011960
Use to measure transpiration, without breakage. Only one glass component (the capillary tube) and is mounted on strong backing plate. It consists of a capillary tube with millimetre scale connected via three way tap to a syringe. The cut shoot is connected to the third outlet. It can also be used to measure humidity by connecting a porous pot to the third outlet.
Related products
-
Plants Physiology
Clinostat, Electrical
0 out of 5(0)Catalogue No. 4012450
For demonstration of heliotropism and geotropism. Germinating seedlings are pinned to the cork table which is rotated by an electric motor at 5 revolutions per hour, and rated 220-240V, 50-60Hz, 5W. The motor is spindle mounted and may be clamped by a thumbscrew so that the plane of the table can be set at any angle. Slow rotation in the vertical or horizontal planes cancel out the effect of gravity and directional light. A Plastic cover is provided for the cork table to shield the seedlings from draughts. Diameter of cork disc is about 100mm.
SKU: 4012450 -
Plants Physiology
Ganong’s Potometer with PTFE Key Stop-cock
0 out of 5(0)Catalogue No. 4012100/2
Comprises a graduated, narrow bore, horizontal glass measuring tube with a vessel for a plant shoot at one end and having a vertical limb with a stopcock and a funnel fitted by a ground glass joint. Mounted on a wooden stand. For Demonstration, of transpiration rates and rates of water absorption by a cut shoot under various external conditions. A plant shoot is sealed into a stopper which fits the end tube, and the whole apparatus is filled with water, the open end of the capillary tube, which is graduated in millimetres, dipping into a beaker of water. The position of the air bubble may easily be adjusted by opening the glass stopcock to admit water from the central reservoir. The whole apparatus is mounted on a varnished wooden base by spring clips. Comprises a graduate, narrow bore, horizontal glass measuring tubes with a vessel for plant shot at one end and having a vertical limb with a Teflon stopcock and a funnel fitted by a ground glass joint. Height to top of reservoir 170mm, Diameter of reservoir 20mm Length, overall 320mm, Base 320x80mm (L x W), Capillary bore 1mm.
SKU: 4012100/2 -
Plants Physiology
Thoday’s Potometer
0 out of 5(0)Catalogue No. 4012000
Comprises a horizontal glass tube with one end vertical to take a plant shoot and the other end connected by rubber tubing to narrow bore glass tube with a scale. A vertical limb on the tube is connected to a thistle funnel by rubber tubing fitted with a spring clip. Mounted on a wooden stand to which the plant shoot can be attached for support.
SKU: 4012000 -
Plants Physiology
Ganong’s Potometer with Glass Stop-cock
0 out of 5(0)Catalogue No. 4012100/1
Comprises a graduated, narrow bore, horizontal glass measuring tube with a vessel for a plant shoot at one end and having a vertical limb with a stopcock and a funnel fitted by a ground glass joint. Mounted on a wooden stand. For Demonstration, of transpiration rates and rates of water absorption by a cut shoot under various external conditions. A plant shoot is sealed into a stopper which fits the end tube, and the whole apparatus is filled with water, the open end of the capillary tube, which is graduated in millimetres, dipping into a beaker of water. The position of the air bubble may easily be adjusted by opening the glass stopcock to admit water from the central reservoir. The whole apparatus is mounted on a varnished wooden base by spring clips. Comprises a graduate, narrow bore, horizontal glass measuring tubes with a vessel for plant shot at one end and having a vertical limb with a Teflon stopcock and a funnel fitted by a ground glass joint. Height to top of reservoir 170mm, Diameter of reservoir 20mm Length, overall 320mm, Base 320x80mm (L x W), Capillary bore 1mm.
SKU: 4012100/1
