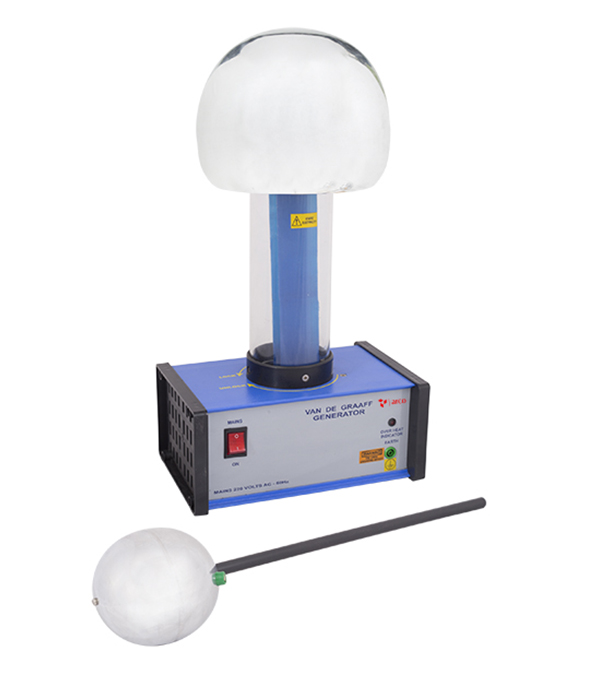

Van De Graaff Generator, Motor Driven, Small
Catalogue No: 1080660
Useful for electrostatics experiments, where continuous source of high electric potential is needed.
Useful for electrostatics experiments, where continuous source of high electric potential is needed. A motor driven assembly encased in a sturdy metal box made of Aluminum extrusion with insulated plastic side supports for safety. The motor driven lower roller rotates the rubber belt through an other roller at the top. The charge collecting combs present near the top roller continuously transfer the charge to the spherical metallic dome having smooth and polished surface free of any surface imperfections and without any sharp corner or edge to minimize charge leakage. On bringing earth edd is charge sphere, sufficiently close to the charged dome,transfer of charge takes place in the form of electric spark jumping from dome to the discharge sphere. Under favorable conditions, it can develop electric potential up to 200kV, with a spark of up to 70mm length. 4mm socket terminal provided at the bottom for earthing and another 4mm insert on top of the dome for charge transfer or for mounting accessories. Provides for necessary adjustment in all the critical components.
Supplied complete with discharge sphere, mounted on a long insulated handle. Operates on 220-240V AC, 50/60Hz.
Related products
-
Heat, Physics
Joule And Watt Meter
Catalogue No: 1060950
Electrical energy consumed by a load with power is directly indicated on the front panel meter with a single selection switch. One can see either energy or power consumed by the applied load. Even we can use this instrument with data logger. A potential difference of 0-1V will generate on pulse output sockets. Max. input voltage for the meter is 24V D.C and 17V A.C with 10A max. current. Load current can be controlled by just rotating the knob fitted on the front panel indicated with load current.
Pack of (Pcs): 1
SKU: 1060950 -
-
General Laboratory Tools, Physics
Spirit Levels, 80cm
Catalogue No: 2031841/3D
Shock proof and unbreakable bubble tube or vials manufactured with latest technique to prevent vaporization and leakage under normal working conditions. Each level electronically calibrated to ensure precise mounting and alignment of vials and require no adjustment by the user.
*These levels are available with optional add-ons, such as magnetic base and angle setter.
* Levels manufactured from light-weight and economical profile and is meant for normal routine use. Come with metric graduated edge for linear measurements.
3 Vial, Size 80cmPack of (Pcs): 1
SKU: 2031841/3D -
General Laboratory Tools, Physics
Spirit Levels, 120cm
Catalogue No: 2031841_2I
Shock proof and unbreakable bubble tube or vials manufactured with latest technique to prevent vaporization and leakage under normal working conditions. Each level electronically calibrated to ensure precise mounting and alignment of vials and require no adjustment by the user.
*These levels are available with optional add-ons, such as magnetic base and angle setter.
* Levels manufactured from light-weight and economical profile and is meant for normal routine use. Come with metric graduated edge for linear measurements.
2 Vial, Size 120cmPack of (Pcs): 1
SKU: 2031841_2I -
Physics, Power Supplies
Battery Eliminator, 2 Amp
Catalogue No: 2040521/3
Features full wave bridge rectifier, double wound transformers for minimum losses over continuous prolonged use. Provided with indicator ON/OFF switch. Output voltages available are 2, 4, 6, 8, 10 and 12V, through a pair of 4mm safety socket and selectable through rotary knob with positive click stops. Input fused for protection. Operates on 110/220V AC (selectable), 50/60Hz. Available in current ratings:
* Battery Eliminator, 2APack of (Pcs): 1
SKU: 2040521/3
